Contact us For more Info on the
HD75V Plug & Play

You may pick multiple
You may pick multiple
Loading
Home / Plug & Play Systems / HD75V Plug & Play
230 CFM

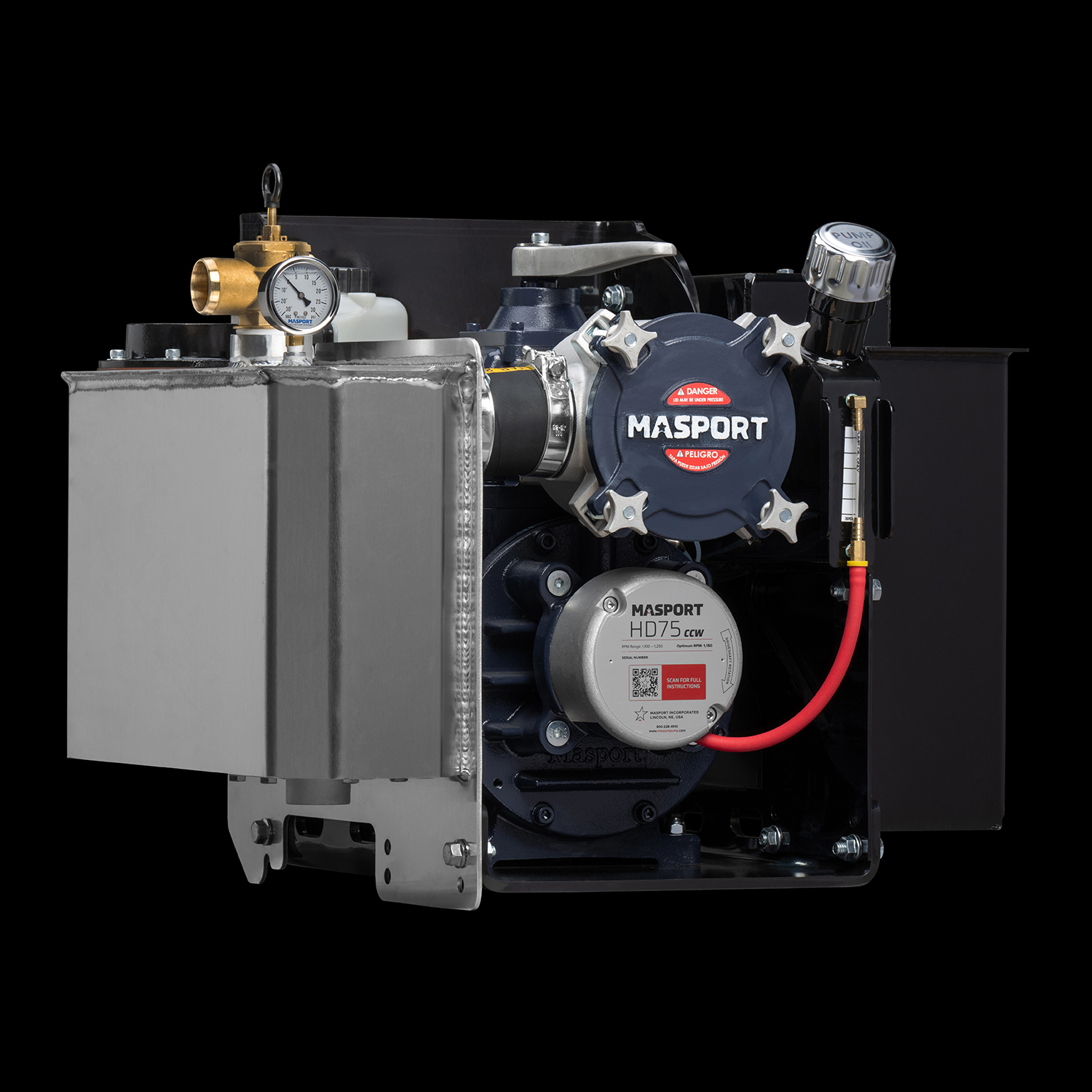

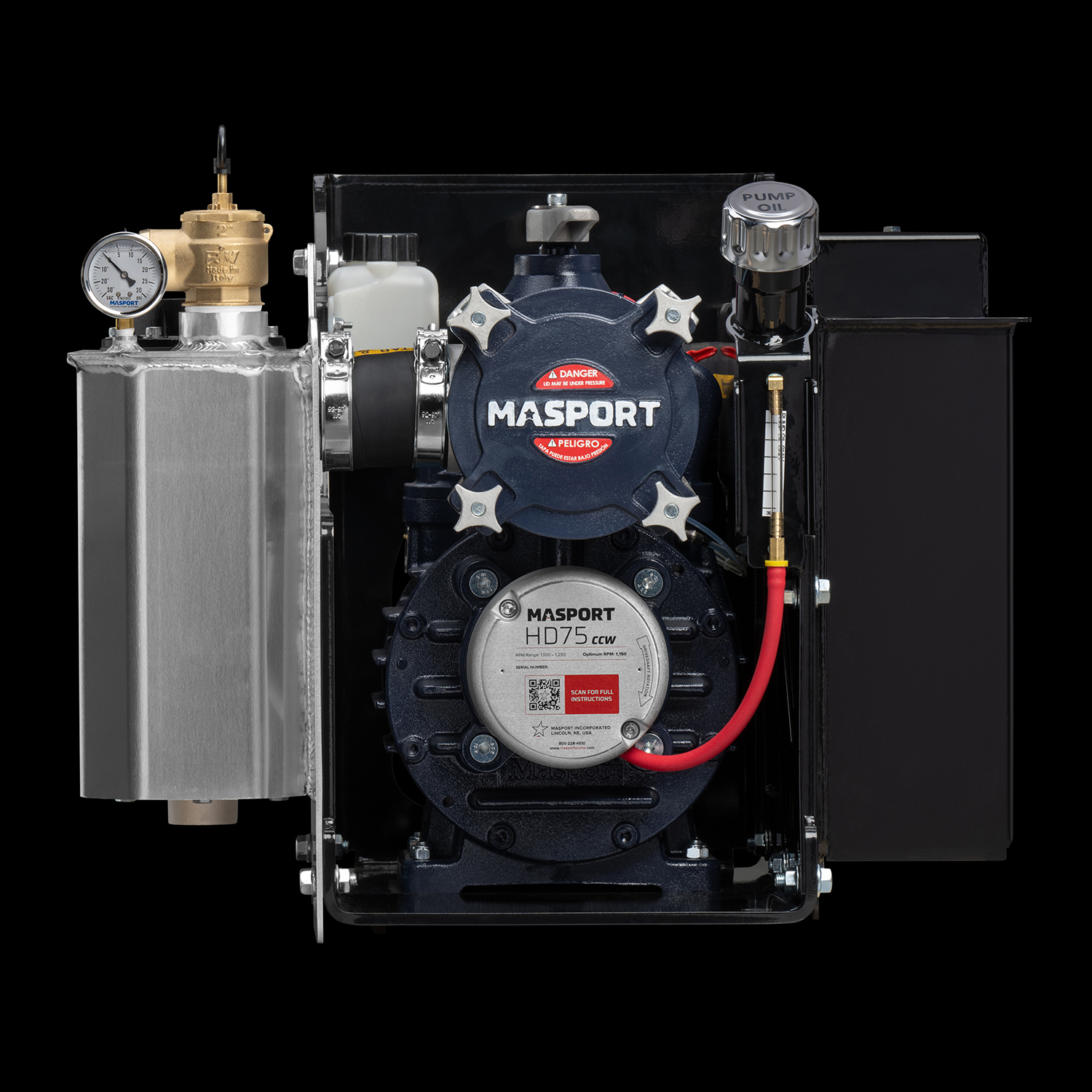

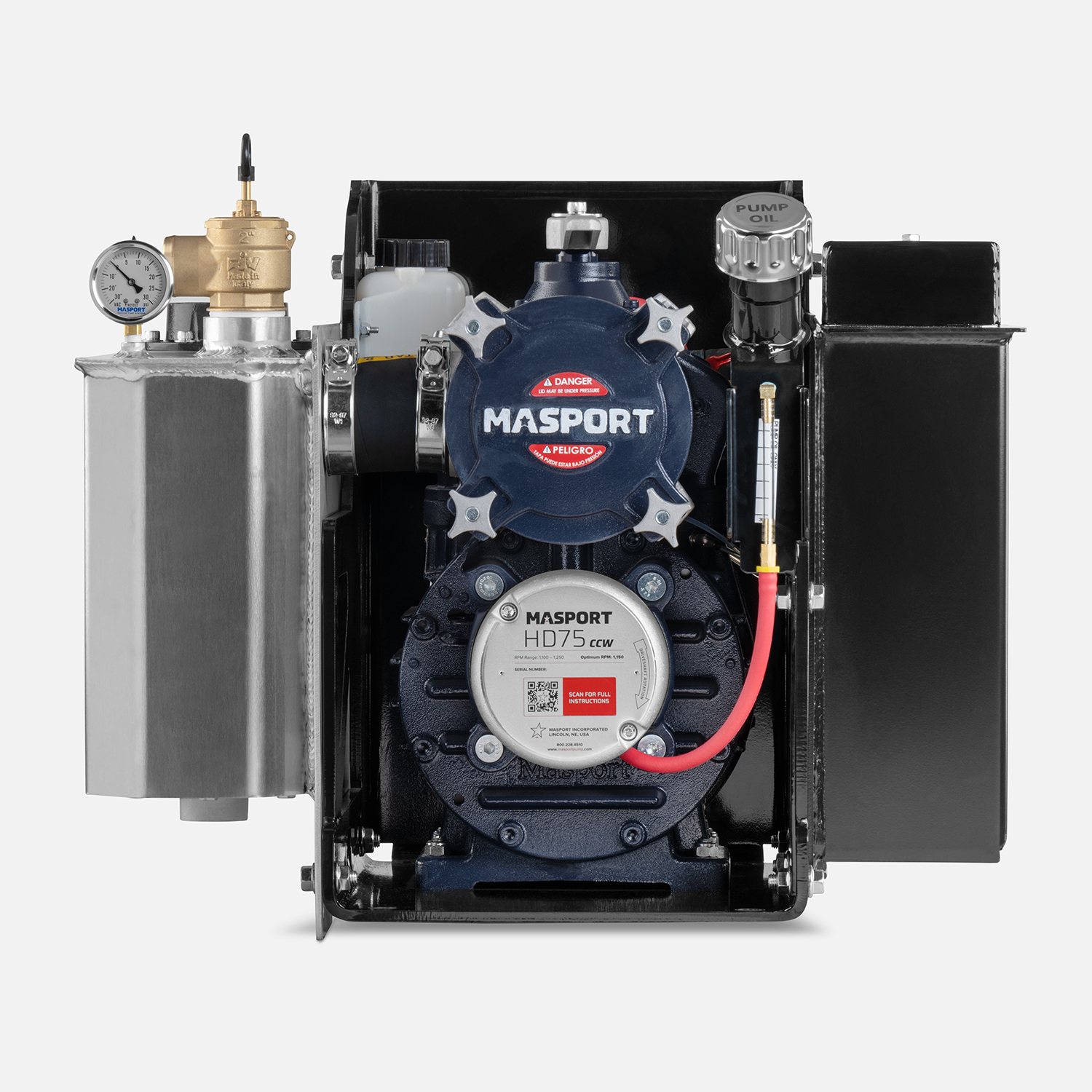

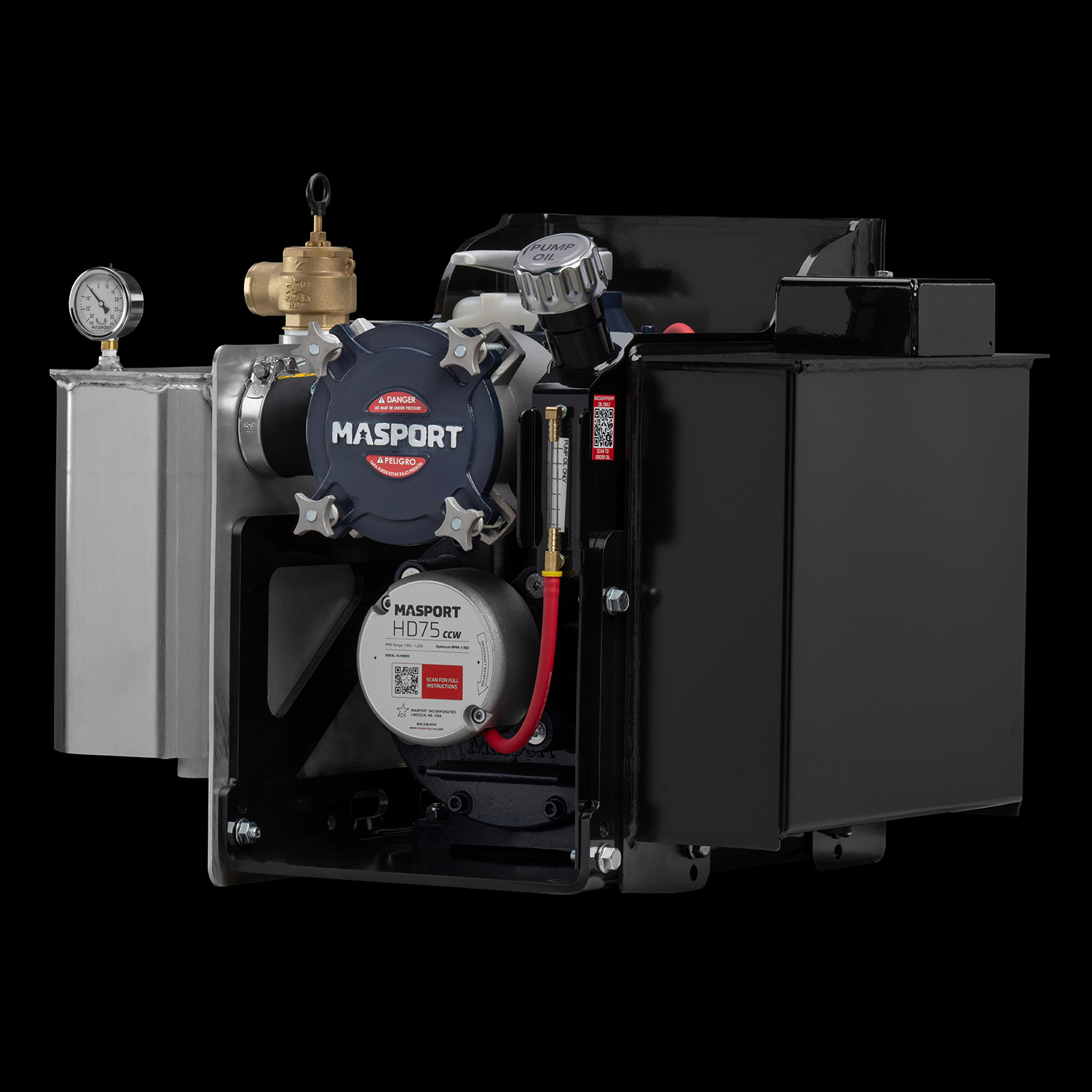

HD75V Plug & Play

The HD75V Plug & Play System is designed for easy installation, operation, and maintenance, giving you and your drivers quicker and easier access to the components for daily operations.
Performs both Vacuum and Pressure.

  • Drive Options Gearbox (CW / CCW), Hydraulic
Contact for More Details Find replacement parts
  • Part Number

    12768ICWF, 12768ICCWF, 12768IHF
  • Airflow

    230 CFM
  • Optimal Tank Size

    1,500 to 2,500 Gallons
  • Port Size

    3″
  • Series

    H75 Series
HD75V Plug & Play
HD75V Plug & Play
HD75V Plug & Play
  1. Home
  2. Products
  3. Plug & Play Systems
  4. HD75V Plug & Play

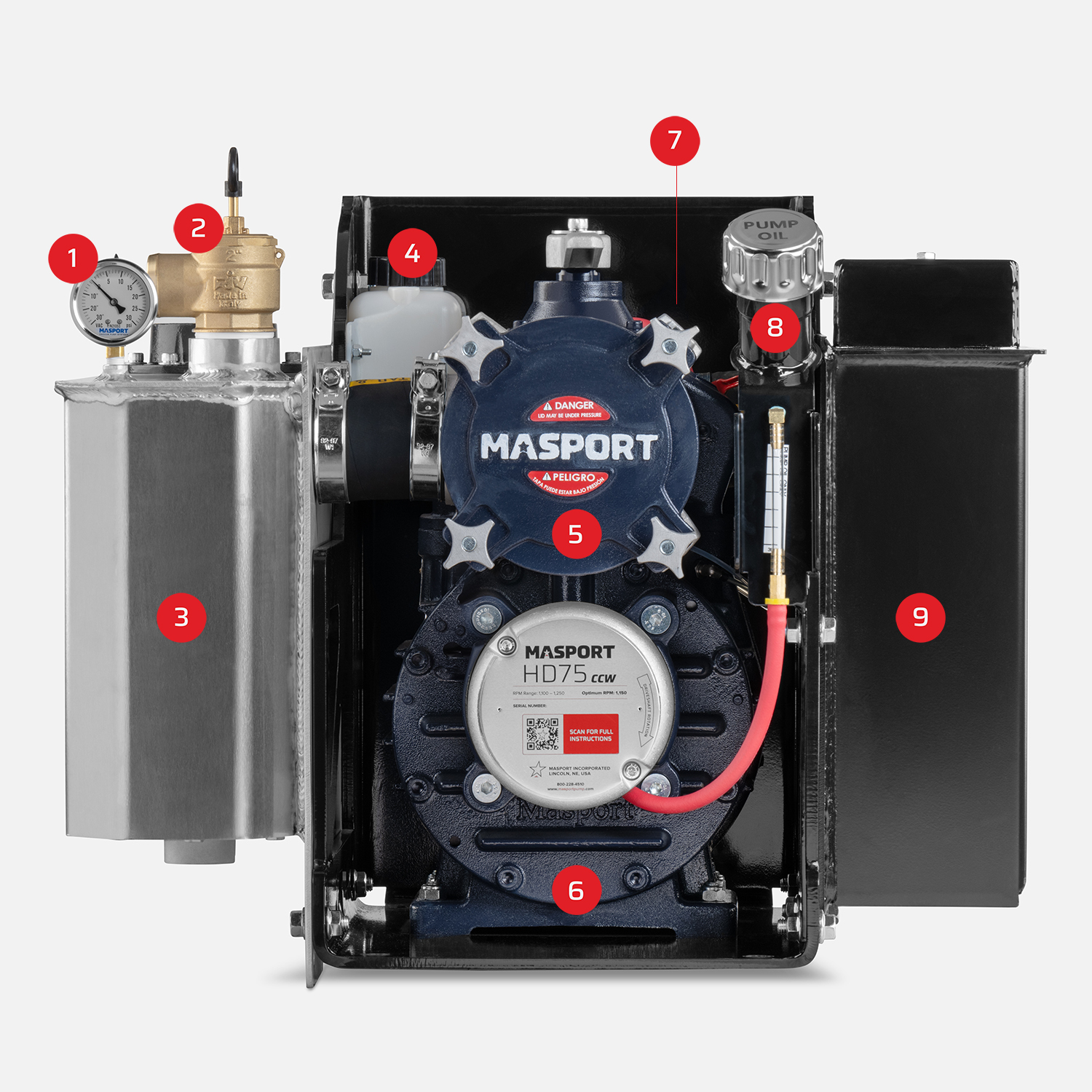

FEATURES: HD75V PLUG & PLAY

  • 1 Vacuum/Pressure Gauge

  • 2 Pressure Relief Valve

  • 3 Aluminum Scrubber/Secondary

  • 4 Plastic Flushing Reservoir

  • 5 Pre-Filter with Stainless Steel Inlet Filter

  • 6 HD75V CCW 235 CFM Vacuum/Pressure Pump

  • 7 Vacuum Relief Valve

    (Not Visible – Attached to Vacuum Pump)
  • 8 Heavy Duty Steel Oil Reservoir

  • 9 Steel Oil Separator/Muffler with Exhaust Deflector

HD75 Plug And Play
HD75 Plug And Play
  • 10 Heavy Duty Pump Stand

  • 11 Self Aligning Gearbox or Hydraulic Drive Options

  • 12 Heavy Duty Rexnord Omega Coupling Kit

    (For Gearbox Drive Units)

Technical Specifications

HD75V Plug & Play
  • Airflow

    230 CFM
  • Port Size

    3″
  • Cooling Type

    Air Cooled
  • Optimal Tank Size

    1,500 to 2,500 Gallons
  • Drive Options

    Gearbox (CW / CCW), Hydraulic
  • Oiling System

    Automatic Oil Pump
  • Oil Reservoir Options

    Steel
  • Weight (approx.)

    610 lbs (Gearbox), 615 lbs (Hydraulic)
  • Max Vacuum (Continuous)

    20″ Hg
  • Max Vacuum (Intermittent)

    27″ Hg
  • Max Pressure (Continuous)

    20 P.S.I.G.
  • Max Pressure (Intermittent)

    35 P.S.I.G.

Documentation & Support

HD75 Pump Manual
Download (8.46 MB)
Get Support

Dimensions – Gearbox

  • Width

    29.625″
  • Height

    18″
  • Depth

    31.6875″
HD75V Plug & Play

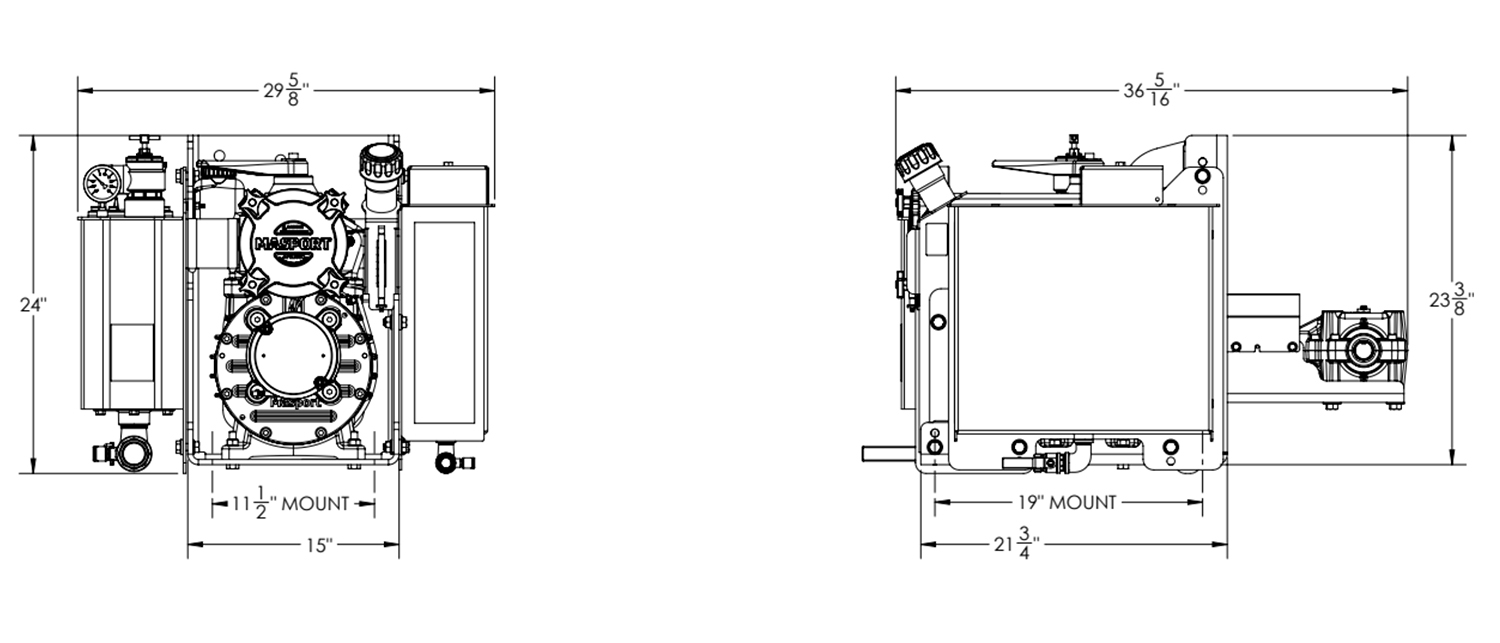

Gearbox Dimensional Drawing

Dimensions – Hydraulic

  • Width

    29.625″
  • Height

    18″
  • Depth

    30.3125″
HD75V Plug & Play

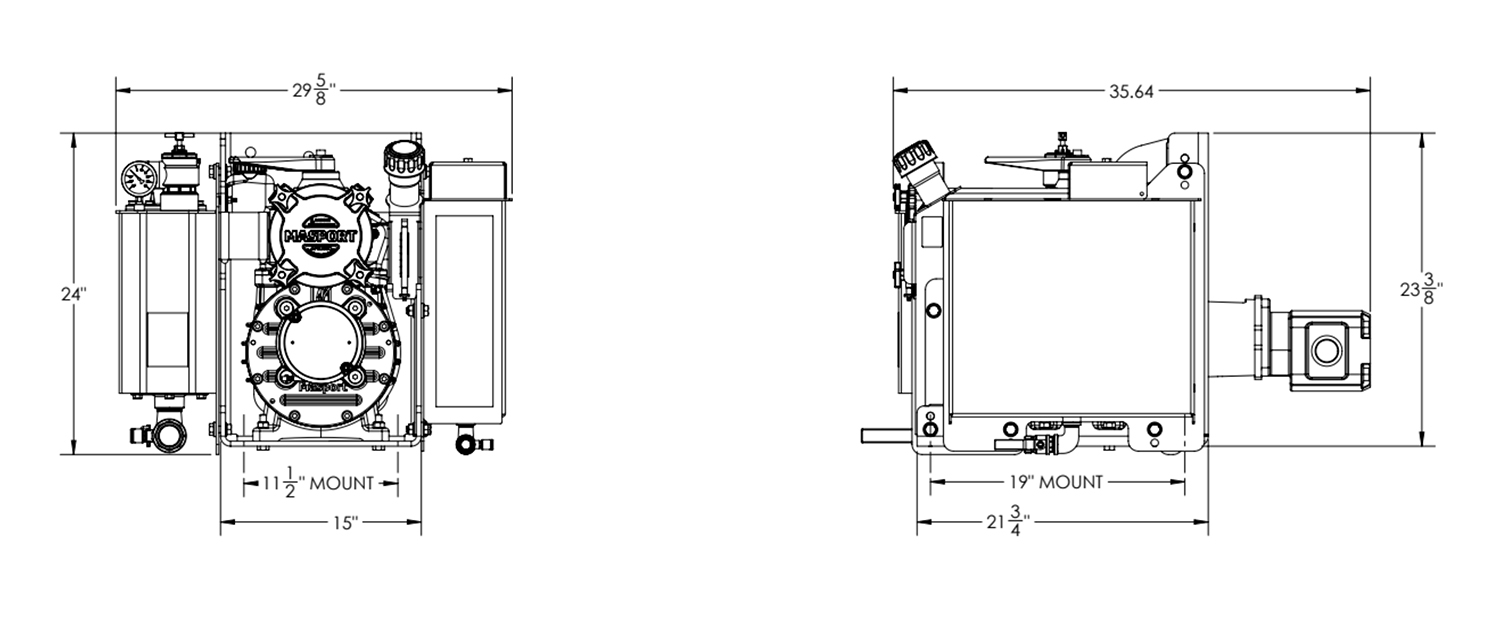

Hydraulic Dimensional Drawing

Integrated Components

HD75V 230 CFM Vacuum/Pressure Pump

x1
CCW ROTATION

Heavy Duty Pump Stand

x1

Scrubber/Secondary

x1

Oil Separator/Muffler

x1
WITH EXHAUST DEFLECTOR

Heavy Duty Steel Oil Reservoir

x1

Plastic Flushing Reservoir

x1

Vacuum Relief Valve

x1

Pressure Relief Valve

x1

Vacuum/Pressure Gauge

x1

Pre-Filter with Stainless-Steel Inlet Filter

x1

Self-Aligning Drive

x1
GEARBOX OR HYDRAULIC

Heavy Duty Rexnord Omega Couplers

x1
FOR GEARBOX DRIVE UNITS
