Contact us For more Info on the
HD75 Pro Pack 2500

Loading
Home / Engine Drive Systems / HD75 Pro Pack 2500
230 CFM

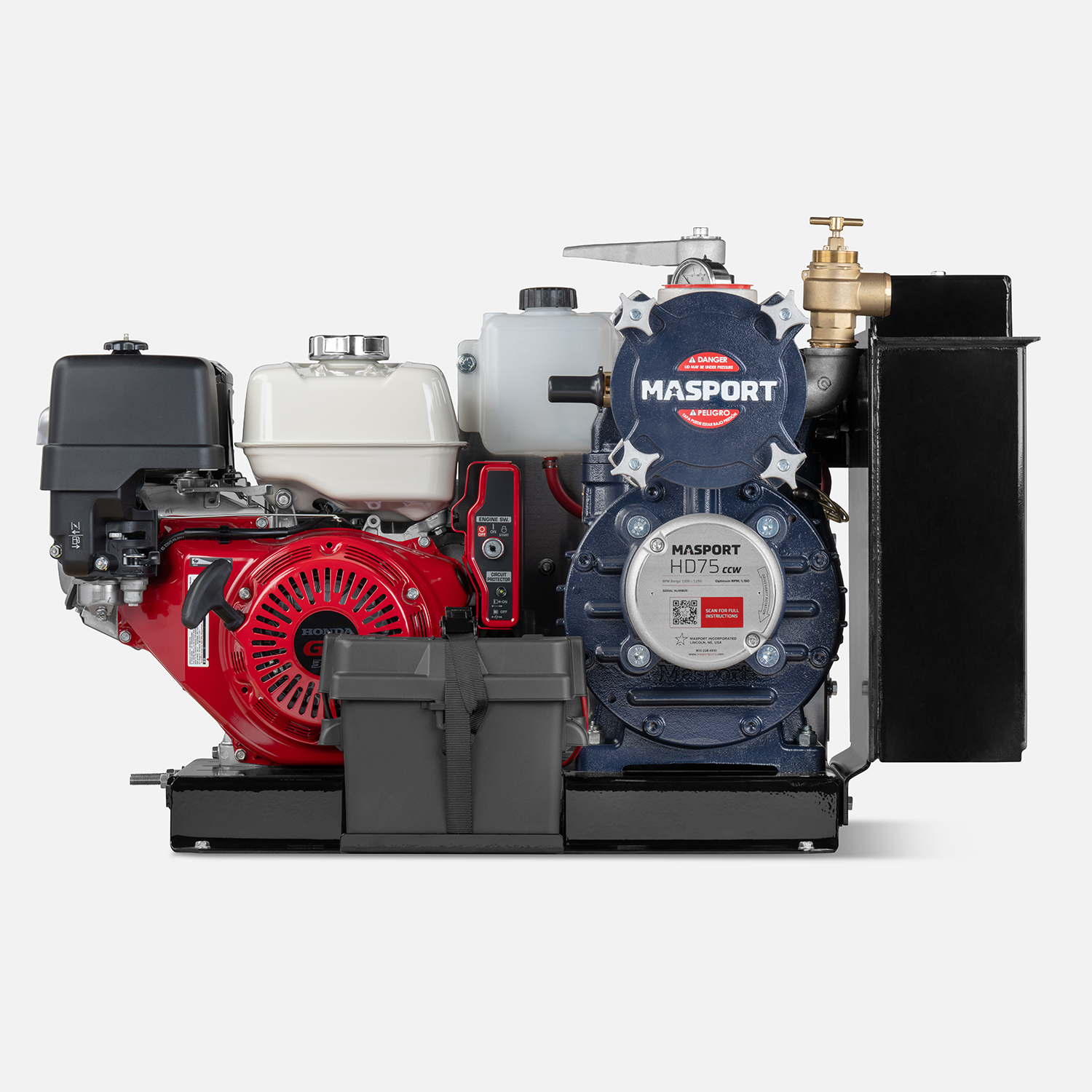

HD75 Pro Pack 2500

The HD75 Pro Pack 2500 is the base model of the H75 Series Rotary Vacuum Pump Engine Drive Systems.
Available in one engine size/type.
Operates in both Vacuum and Pressure.

  • Honda Engine 13 HP Gas Engine
Contact for More Details Find replacement parts
  • Part Number

    12617
  • Airflow

    230 CFM
  • Optimal Tank Size

    1,500 to 2,500 Gallons
  • Port Size

    3″
  • Series

    H75 Series
HD75 Pro pack 2500
HD75 Pro pack 2500
HD75 Pro pack 2500
  1. Home
  2. Products
  3. Engine Drive Systems
  4. HD75 Pro Pack 2500

Major
Benefits

With over a 100 years in the industry, Masport guarantees quality and performance in everything we do. Our products are specifically designed and engineered to meet the needs of hard working pumpers around the world.

Superior
Pump Life

Extended operational life reduces the frequency of replacements.

Ruggedness & Durability

Exceptional durability and the ability to withstand challenging conditions.

Ease of
Installation

Saves time and effort with simple and adaptable installation features.

Operational Efficiency

Minimizes manual intervention and the risk of downtime.

Easy
Maintenance

Straightforward and less frequent maintenance requirements.

Peace
of Mind

Quality and reliability assured with a one-year performance warranty.

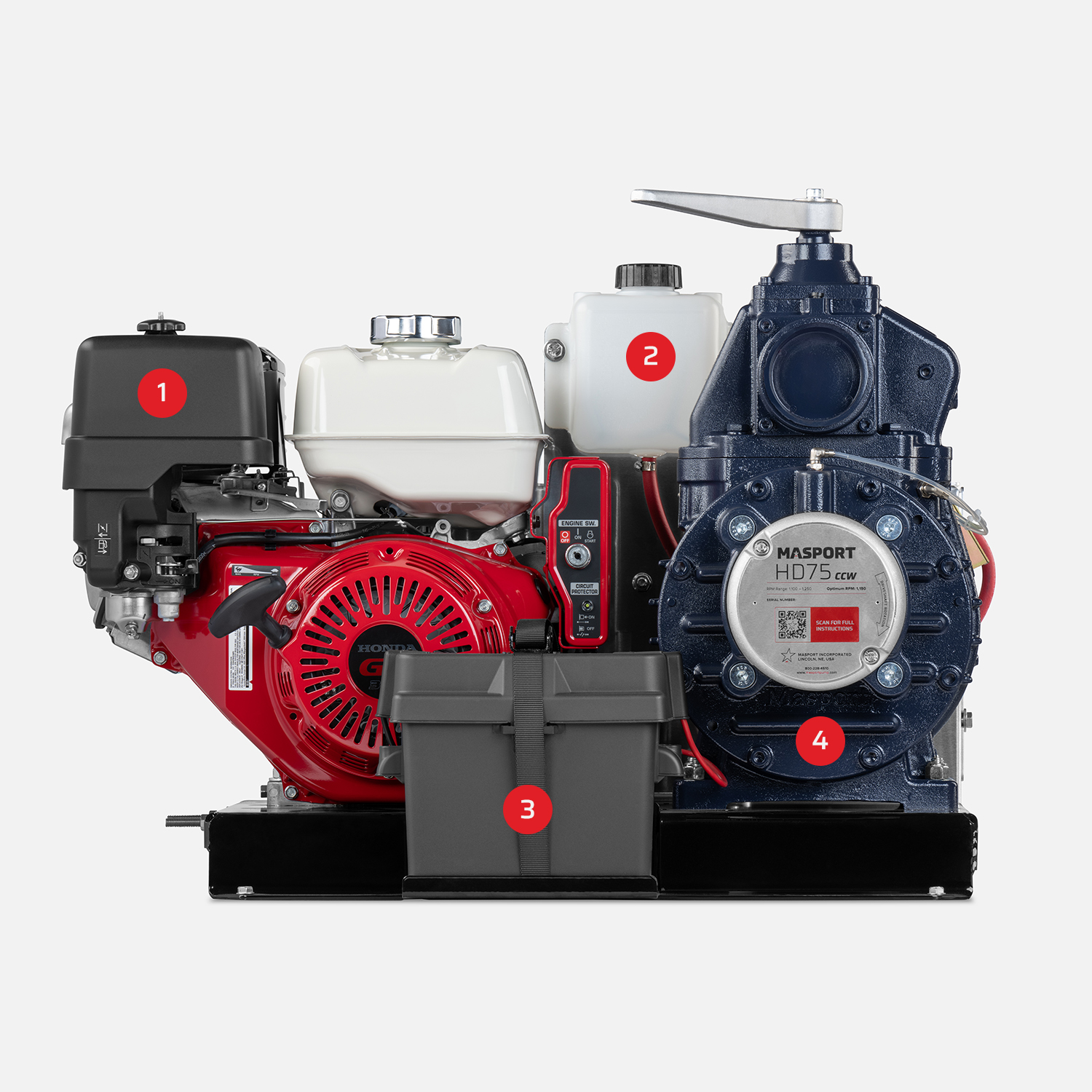

FEATURES: HD75 Pro Pack 2500

  • 1 13 HP Honda Gas Engine – Belt Drive

  • 2 Plastic Oil Reservoir

  • 3 AGM Battery

  • 4 HD75V CCW 235 CFM Vacuum/Pressure Pump

HD72 Pro Pack 2500

Quality & Performance

Masport Guarantee

The quality and performance you’ve trusted for over a century.

Model Variations

Offers models tailored for specific operational needs.

Construction Quality

Precision-built for peak performance and durability.

Convenience

Designed for quick installation and easy operation.

Advanced Sealing

Utilizes premium Viton seals for extended service life.

High-Tech Vanes

Employs durable, precision-machined Kevlar vanes.

Self-Maintenance

Automatic oiling mechanism for hassle-free operation.

Monitoring Ease

Transparent oil lines for easy visual checks.

Protection System

Innovative design prevents internal component damage.

Installation Convenience

Simplified valve flanges for quick setup.

Serviceability

Designed for easy and cost-effective servicing.

Warranty

One-year warranty for quality assurance.

Technical Specifications

12617 HD75 Pro Pack
  • Airflow

    230 CFM
  • Port Size

    3″
  • Optimal Tank Size

    1,500 to 2,500 Gallons
  • Oiling System

    Automatic Oil Pump
  • Oil Reservoir Options

    Plastic
  • Honda Engine

    13 HP Gas Engine
  • Airflow

    230 CFM
  • Weight (approx.)

    430 lbs
  • Max Vacuum (Continuous)

    20″ Hg
  • Max Vacuum (Intermittent)

    27″ Hg
  • Max Pressure (Continuous)

    20 P.S.I.G.
  • Max Pressure (Intermittent)

    35 P.S.I.G.
  • Cooling Type

    Air Cooled

Documentation & Support

HD75 Pump Manual
Download (8.46 MB)
Get Support

Dimensions – 13 HP Gas

  • Width

    17.375″
  • Height

    20.0625″
  • Depth

    27.8125″
12617 HD75 Pro Pack

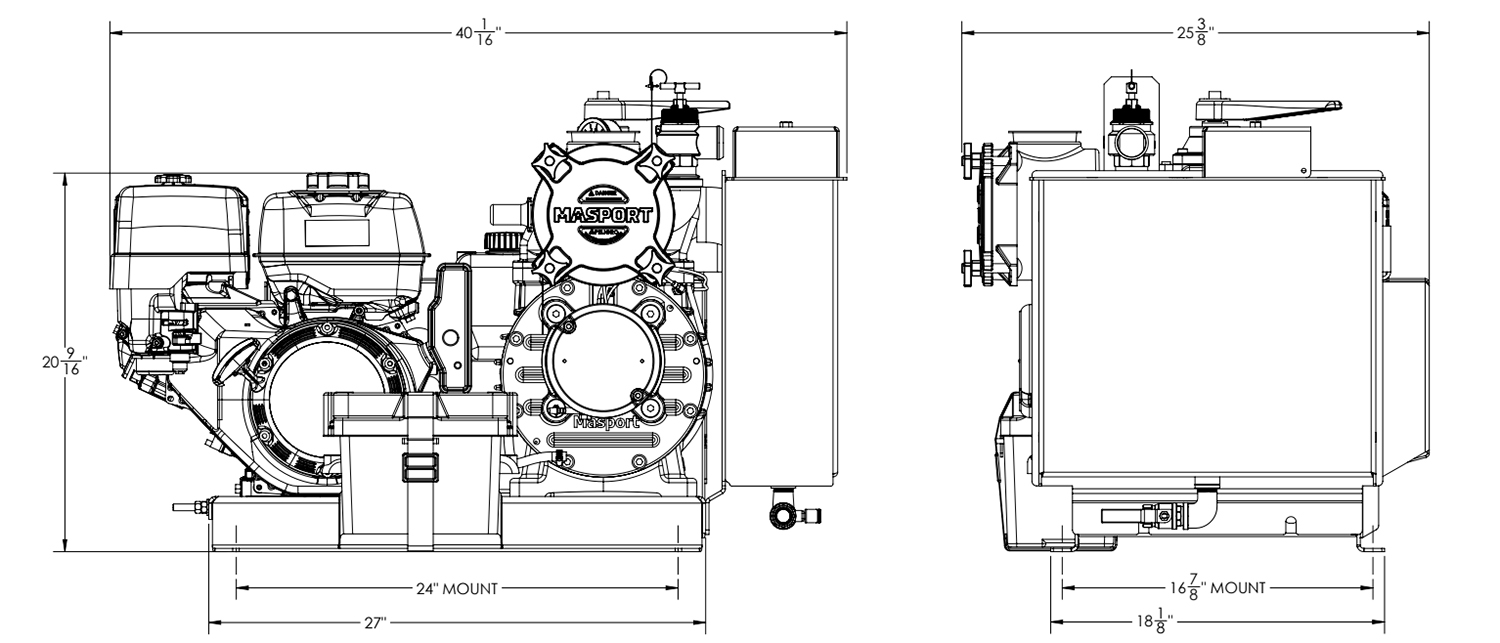

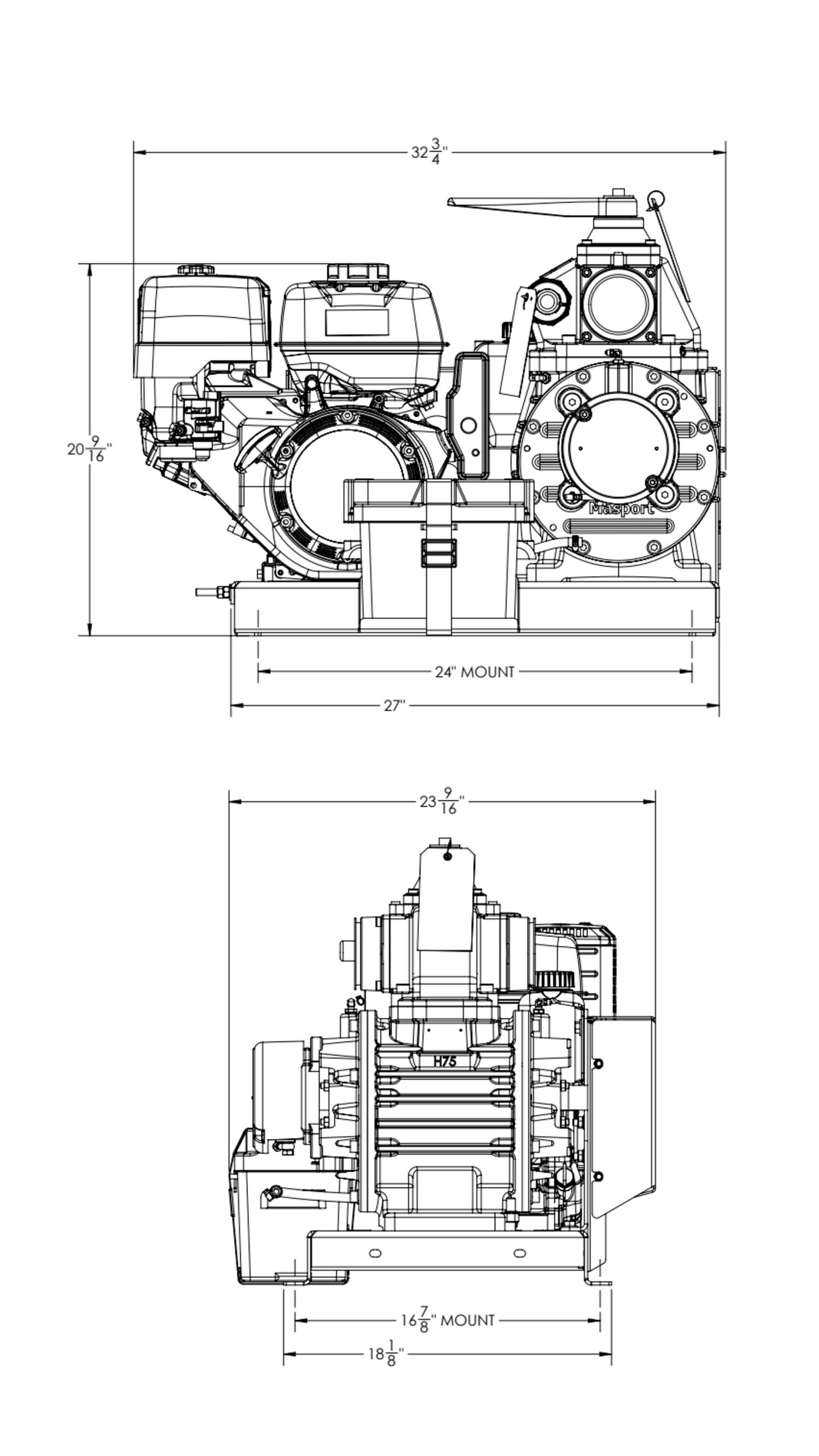

Dimensional Drawing

Integrated Components

HD75V 230 CFM Vacuum/Pressure Pump

x1
CCW

Gas Engine

x1

AGM Battery

x1

Plastic Oil Reservoir

x1

Replacement Parts

Read More
Vacuum Relief Valve

Vacuum Relief Valve – 1 1/2″ (RIV Replacement)

$59.81
Read More
ADD
Read More
Handle Assembly - VIPER, TITAN, SIDEWINDER, HYDRA, COBRA

Handle Assembly – H75, H400W, VIPER, TITAN, SIDEWINDER, HYDRA, COBRA

$42.25
Read More
ADD
Read More

HD75V CCW Vacuum/Pressure Pump

$3,191.03
Read More
ADD
Read More

HD75V CW Vacuum/Pressure Pump

$3,191.03
Read More
ADD

Popular Accessories

Read More

Masport Pump Oil – All Seasons – 12 Gallons

$501.97
Read More
ADD
Read More

Masport Pump Oil – All Seasons – 4 Gallon Case

$201.02
Read More
ADD
Read More

Masport Flushing Fluid – 4 Gallon Case

$201.02
Read More
ADD
Read More

Masport Flushing Fluid – 1 Gallon

$74.04
Read More
ADD
Read More

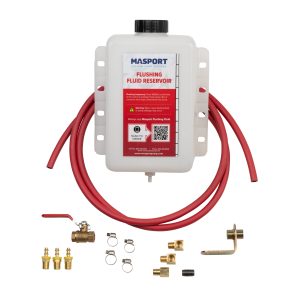

Flushing Kit
