Home / Plug & Play Systems / HD4V Plug & Play
165 CFM

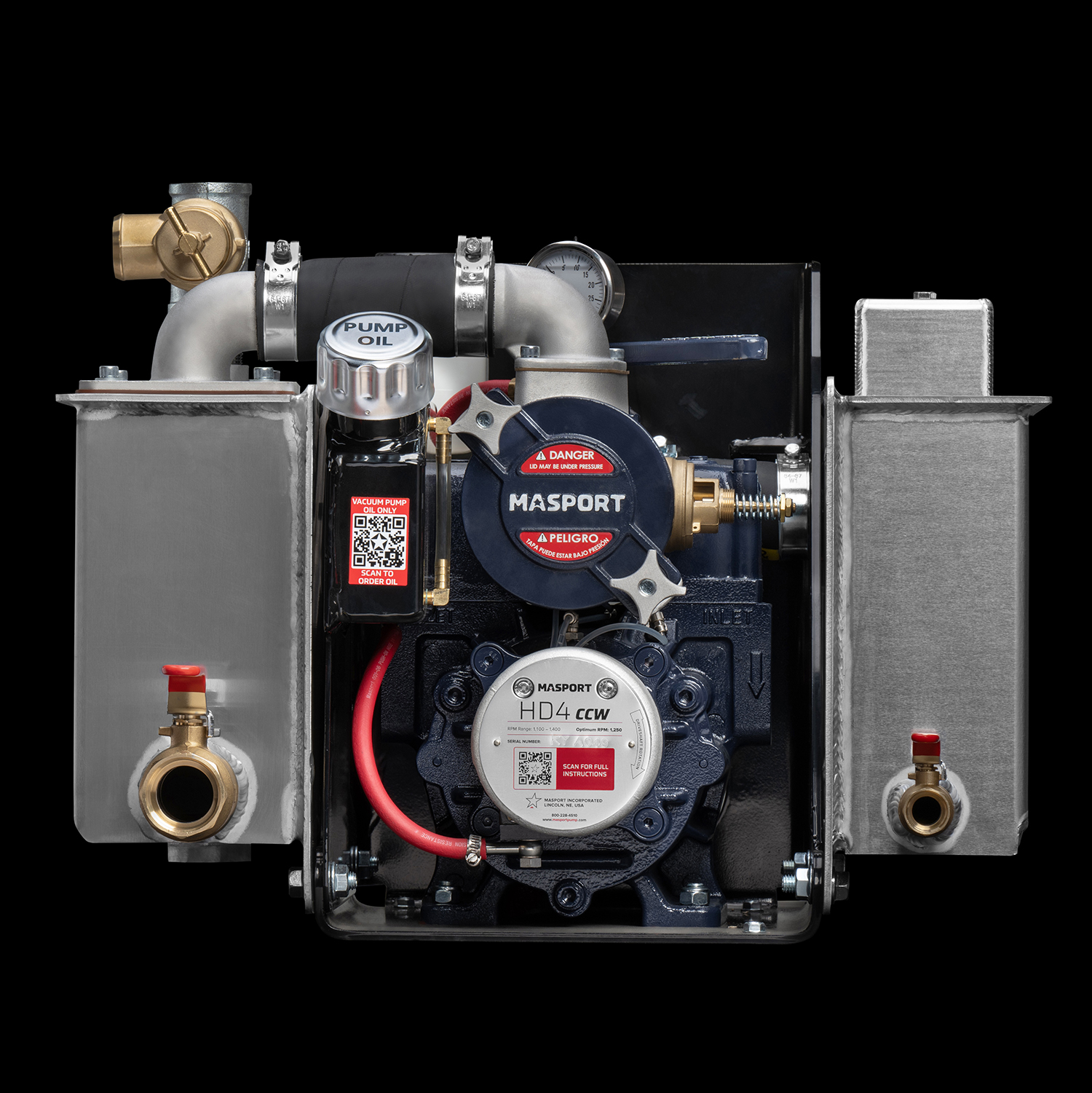

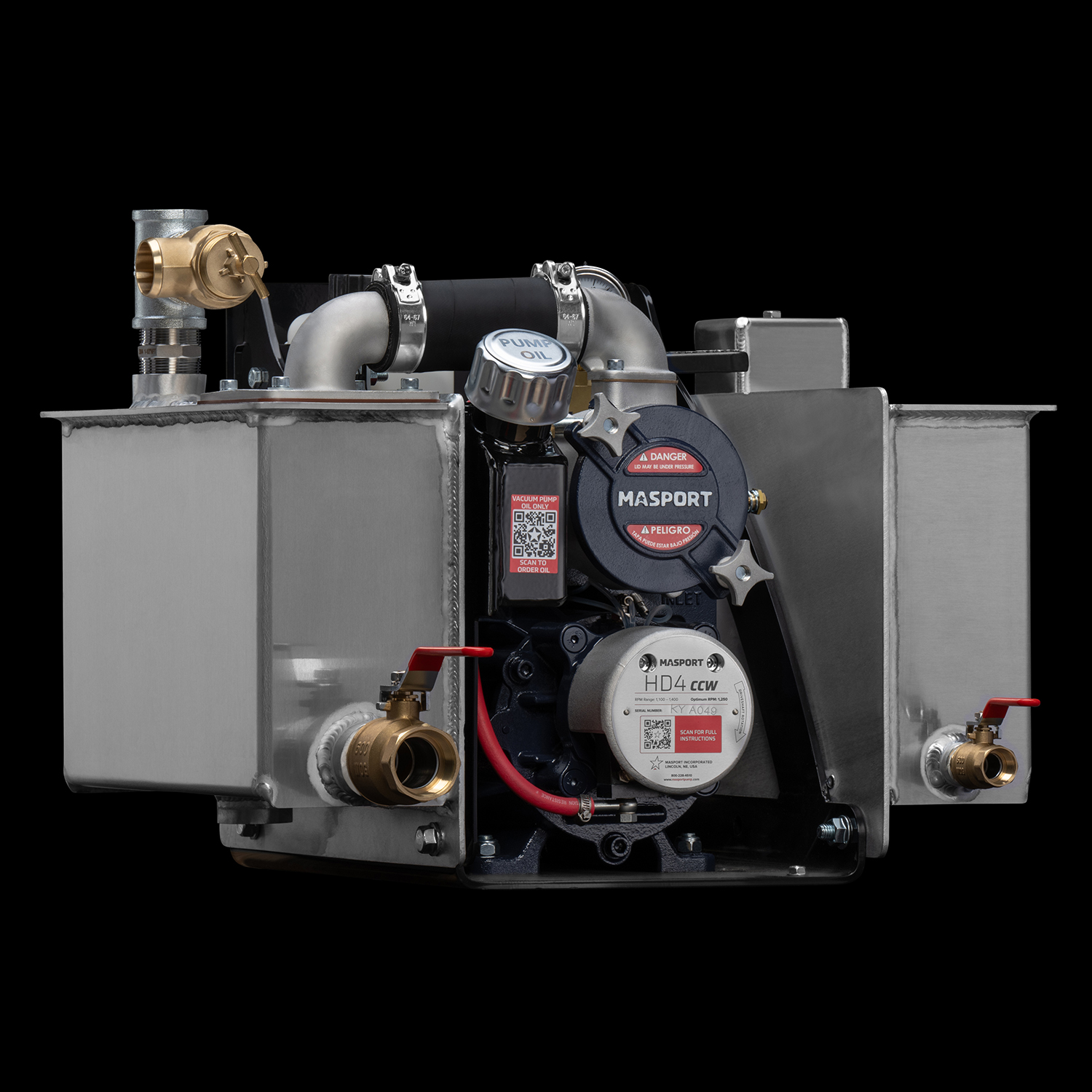

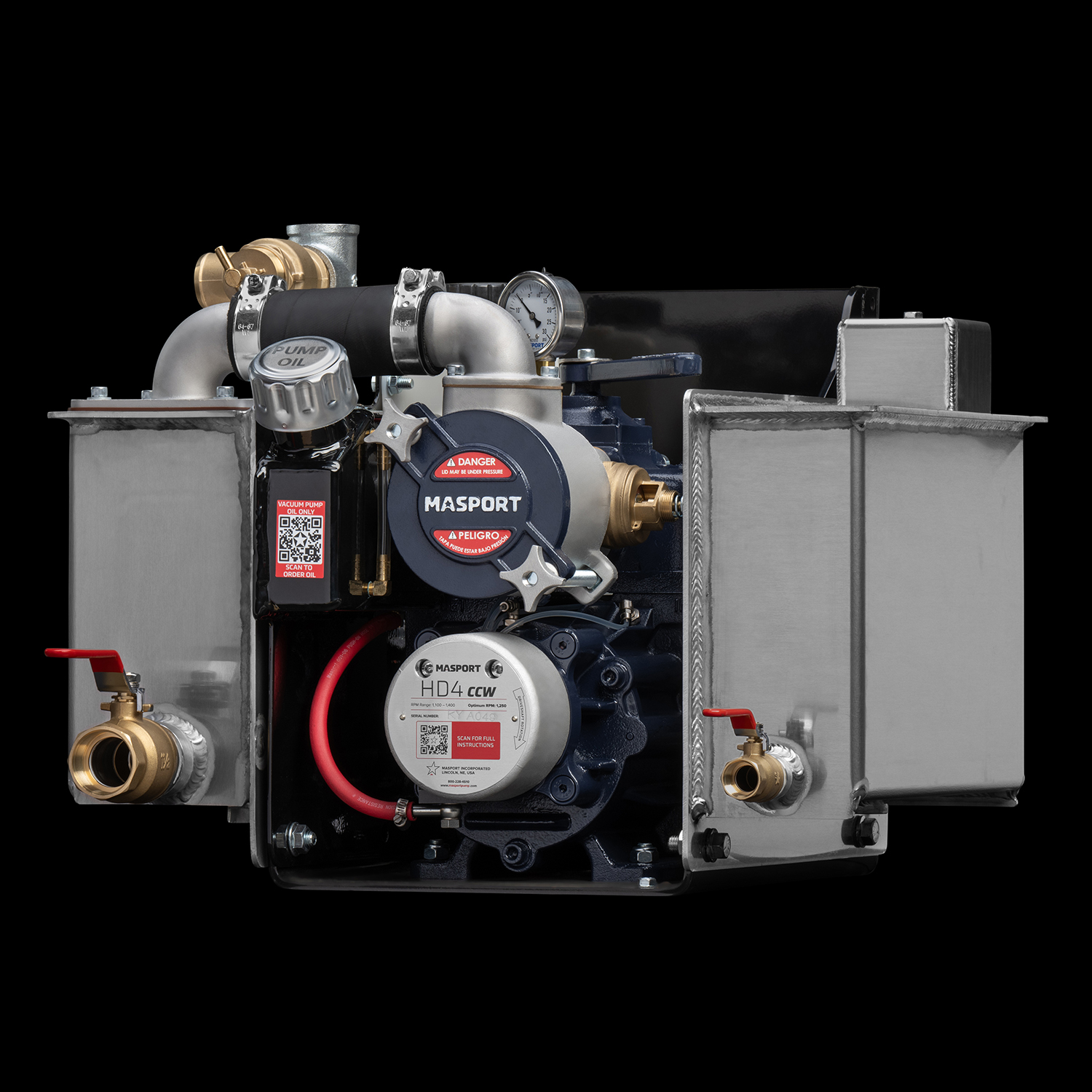

HD4V Plug & Play

The HD4 Plug & Play System is designed for easy installation, operation, and maintenance, giving you and your drivers quicker and easier access to the components for daily operations.
Performs both Vacuum and Pressure.

  • Drive Options Gearbox (CW / CCW), Hydraulic
Contact for More Details Find replacement parts
  • Part Number

    12863ICWF, 12863ICCWF, 12863IHF
  • Airflow

    165 CFM
  • Optimal Tank Size

    1,000 to 1,500 Gallons
  • Port Size

    1 1/2″
  • Series

    H4 Series
HD4V Plug & Play
HD4V Plug & Play
HD4V Plug & Play
  1. Home
  2. Products
  3. Plug & Play Systems
  4. HD4V Plug & Play

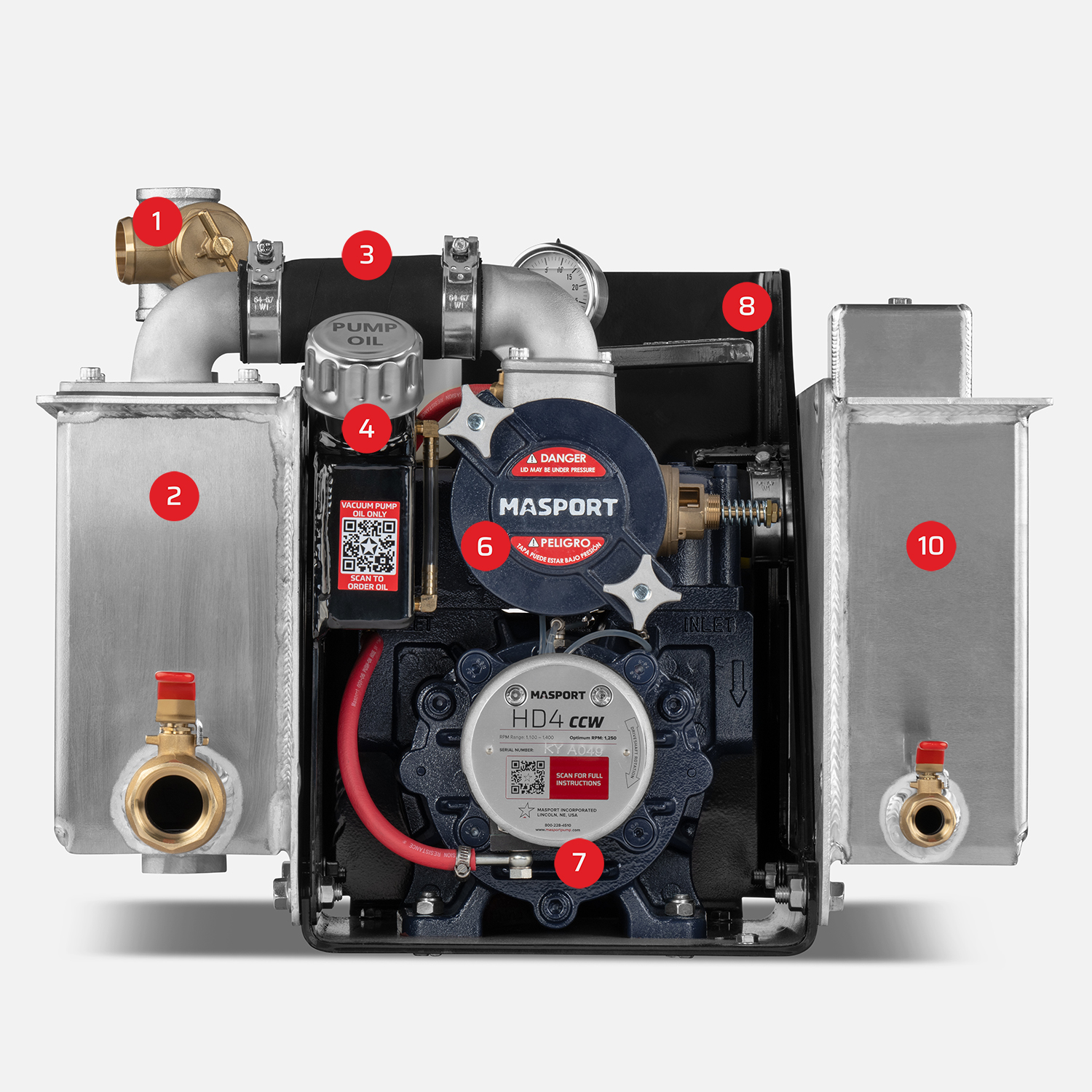

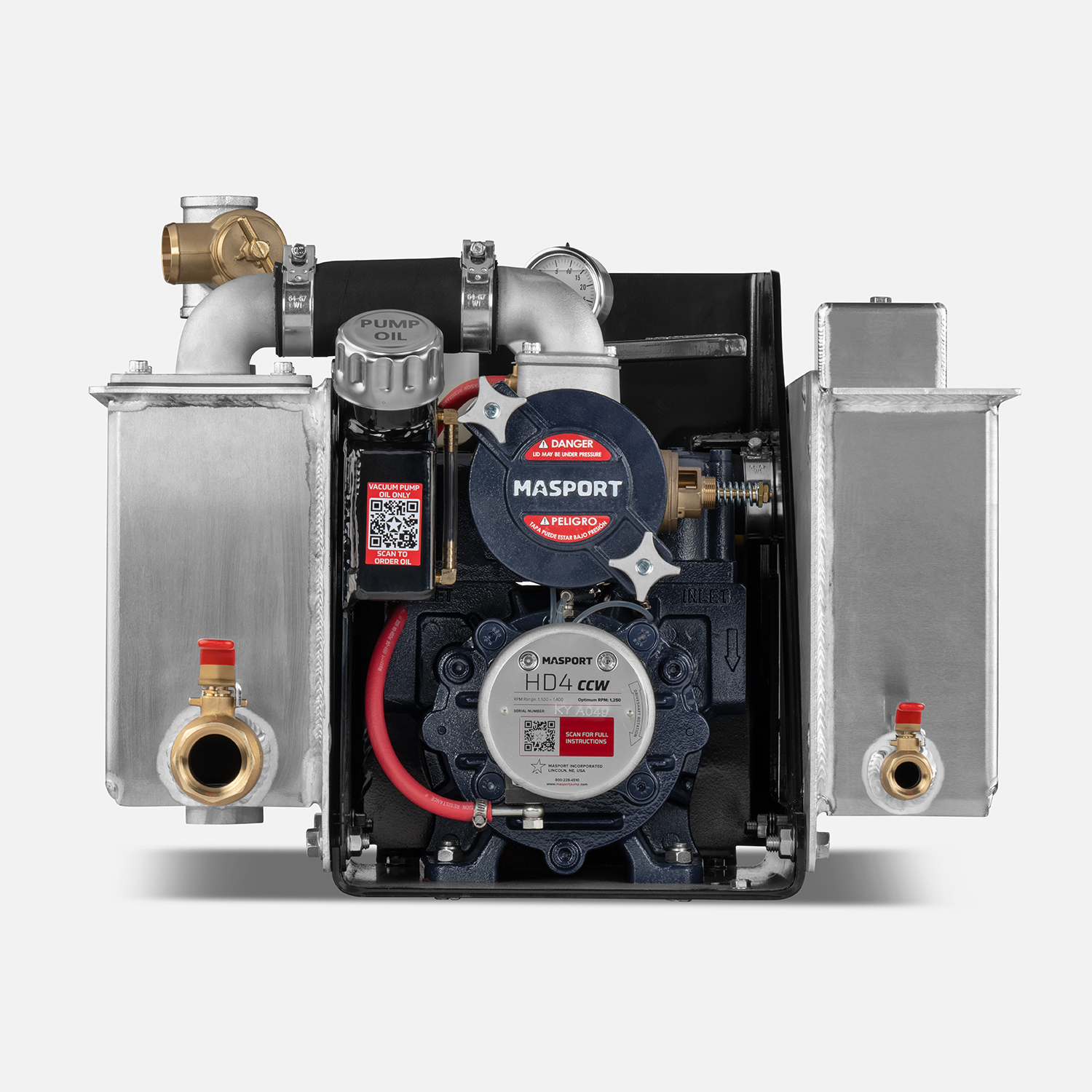

FEATURES: HD4V PLUG & PLAY

  • 1 Pressure Relief Valve

  • 2 Scrubber/Secondary

  • 3 Plastic Flushing Reservoir

    (Behind Integrated Steel Reservoir)
  • 4 Heavy Duty Steel Oil Reservoir

  • 5 Vacuum/Pressure Gauge

  • 6 Pre-Filter with Stainless Steel Inlet Filter

  • 7 HD4V CCW 165 CFM Vacuum/Pressure Pump

  • 8 Heavy Duty Pump Stand

  • 9 Vacuum Relief Valve

  • 10 Aluminum Oil Separator/Muffler with Exhaust Deflector

HD4V Plug & Play
HD4V Plug & Play

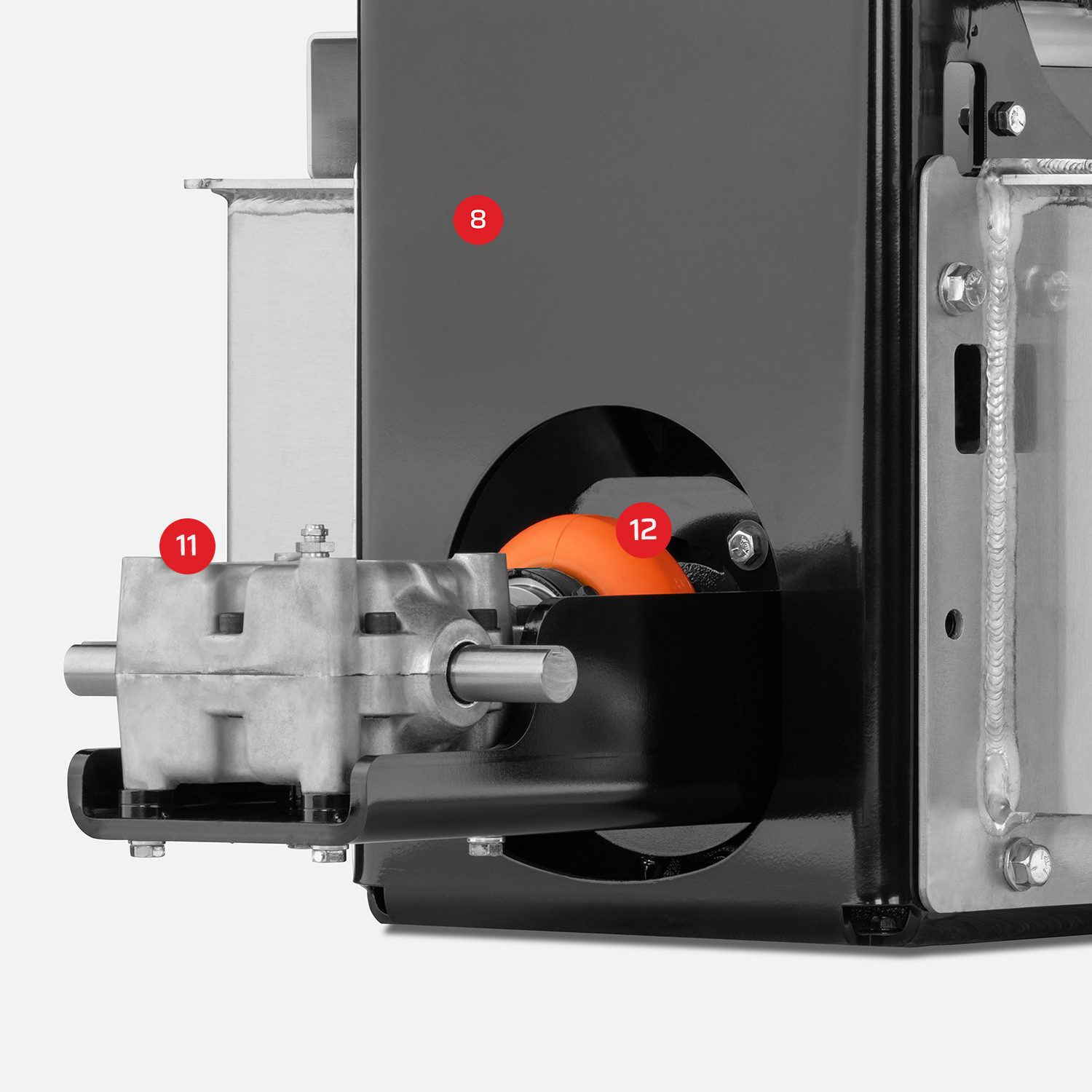

  • 8 Heavy Duty Pump Stand

  • 11 Self Aligning Gearbox or Hydraulic Drive Options

  • 12 Heavy Duty Rexnord Omega Coupling Kit

    (For Gearbox Drive Units)

Technical Specifications

HD4V Plug & Play
  • Airflow

    165 CFM
  • Port Size

    1 1/2″
  • Cooling Type

    Air Cooled
  • Optimal Tank Size

    1,000 to 1,500 Gallons
  • Drive Options

    Gearbox (CW / CCW), Hydraulic
  • Oiling System

    Automatic Oil Pump
  • Oil Reservoir Options

    Steel
  • Weight (approx.)

    390 lbs (Gearbox), 430 lbs (Hydraulic)
  • Max Vacuum (Continuous)

    20″ Hg
  • Max Vacuum (Intermittent)

    27″ Hg
  • Max Pressure (Continuous)

    20 P.S.I.G.
  • Max Pressure (Intermittent)

    30 P.S.I.G.

Documentation & Support

HD4 Pump Manual
Download (8.46 MB)
Get Support

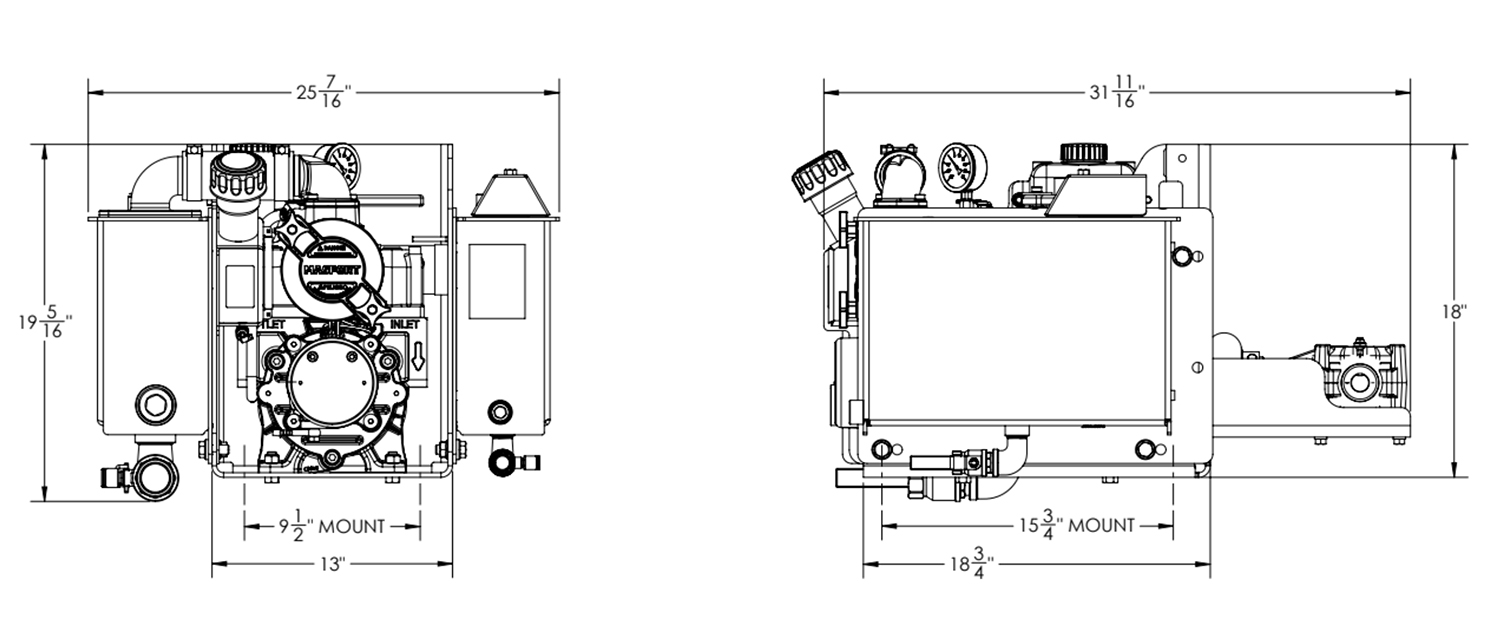

Dimensions – Gearbox

  • Width

    25.4375″
  • Height

    18″
  • Depth

    31.6875″
HD4V Plug & Play

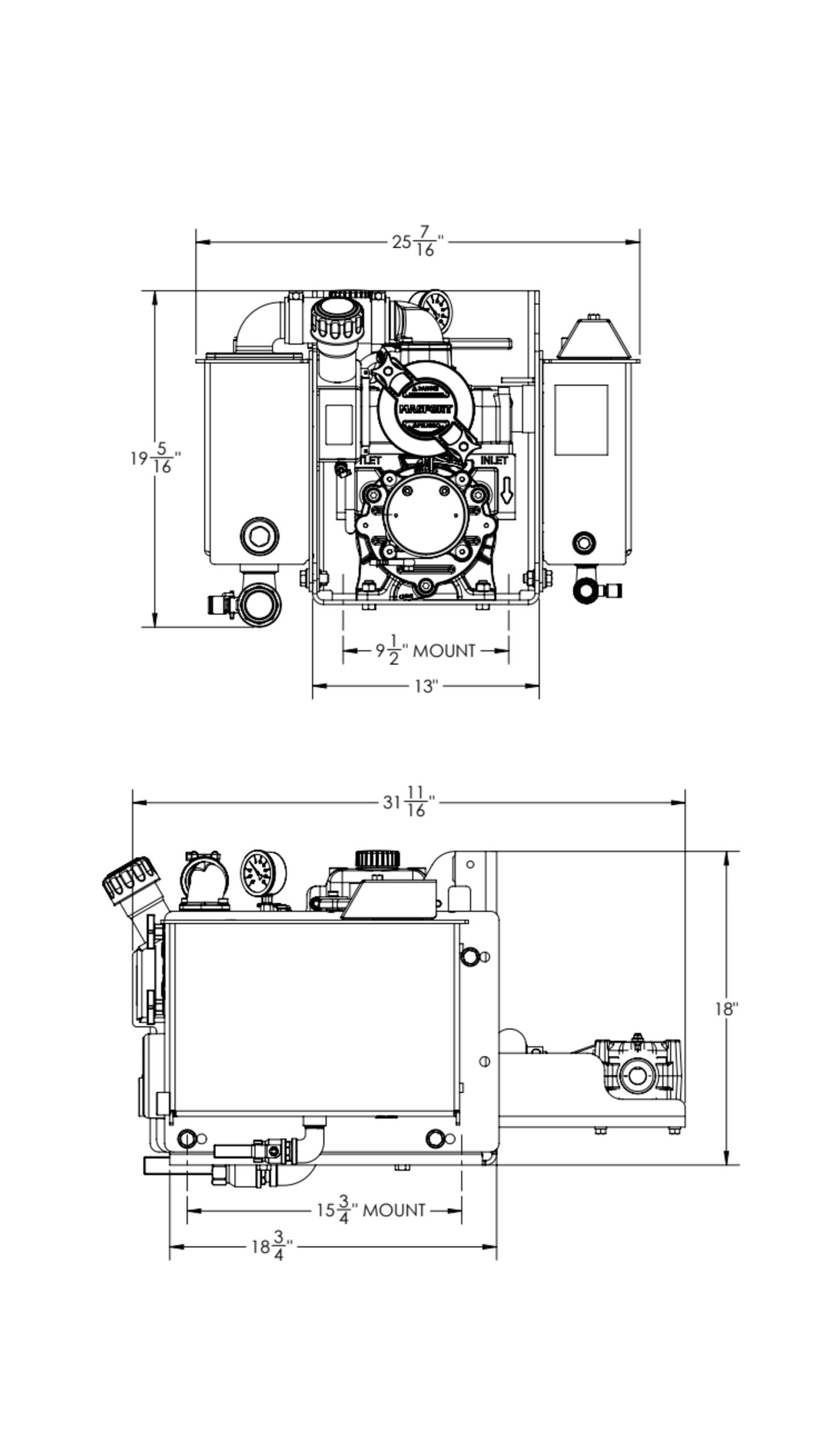

Gearbox Mobile Dimensional Drawing

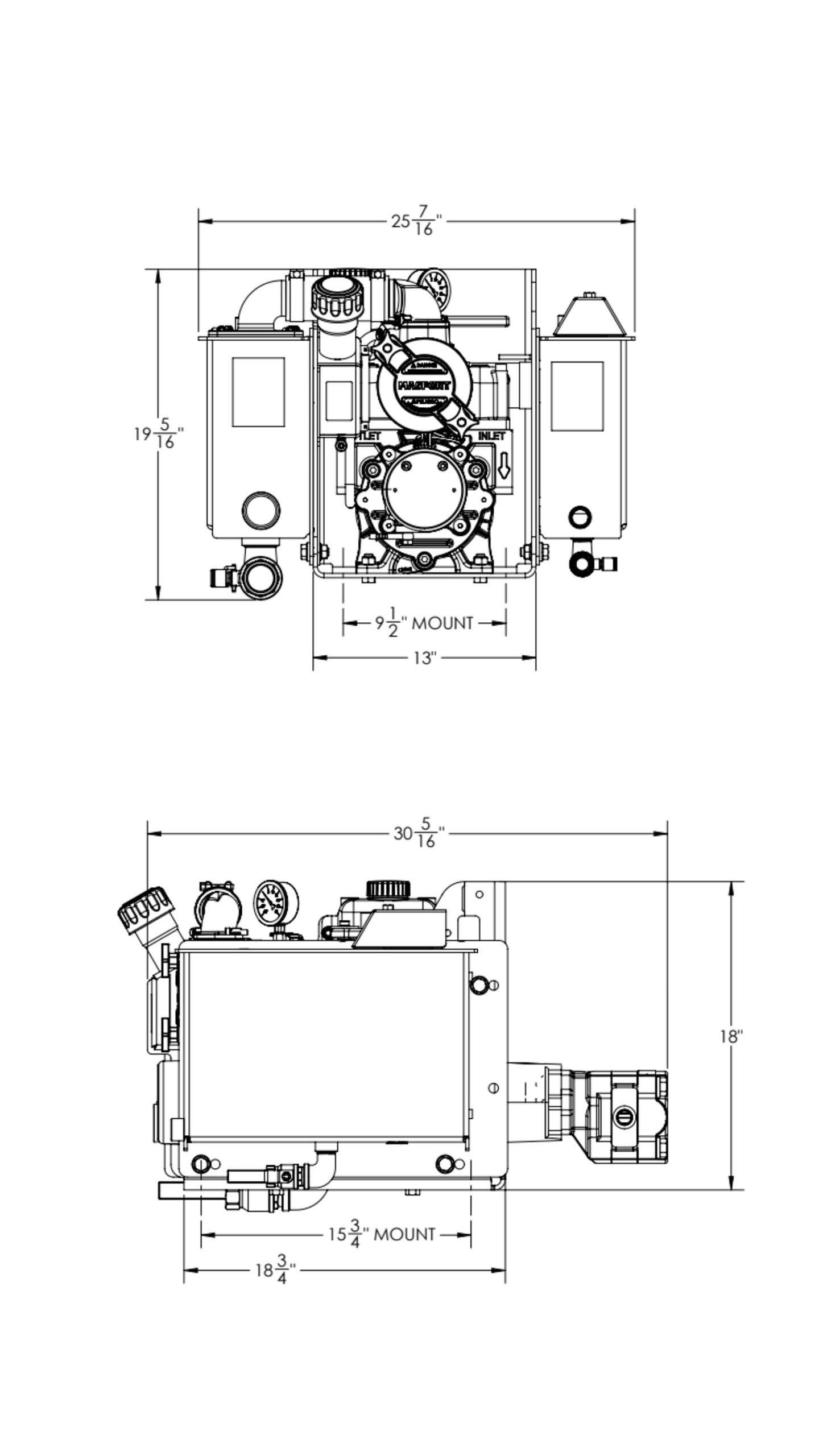

Dimensions – Hydraulic

  • Width

    25.4375″
  • Height

    18″
  • Depth

    30.3125″
HD4V Plug & Play

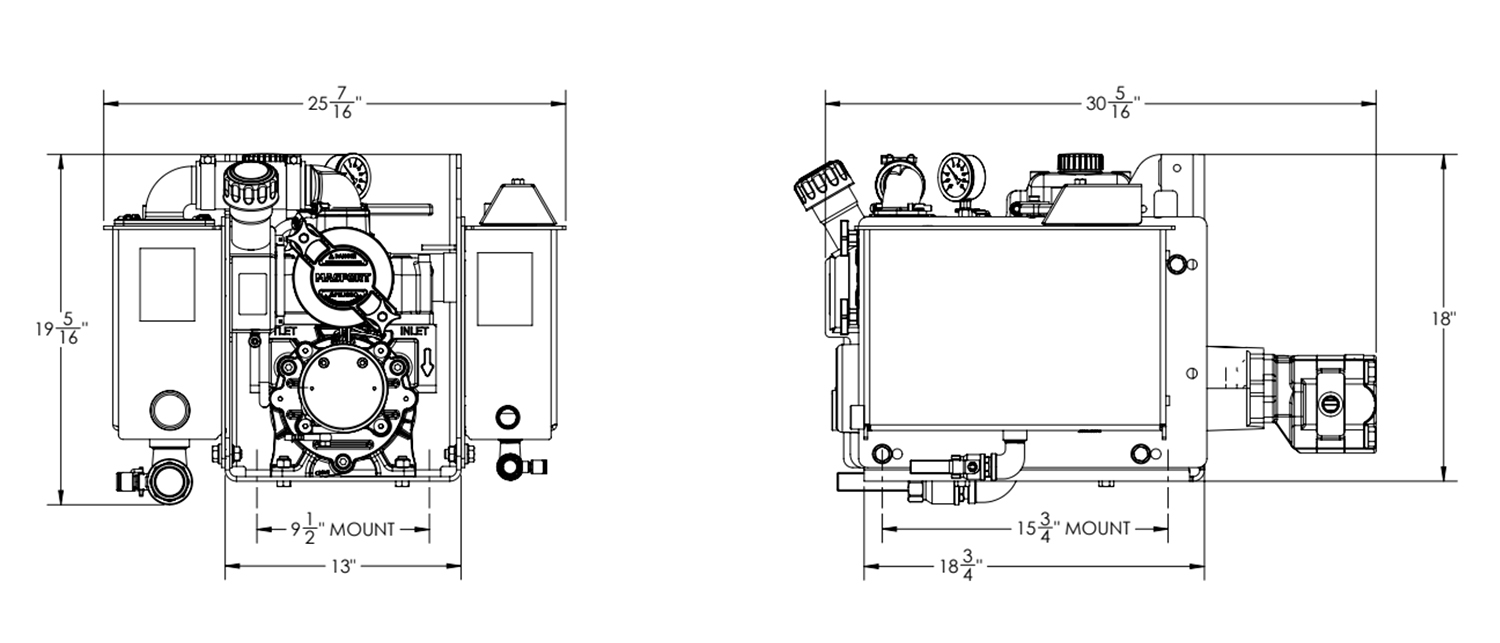

Hydraulic Mobile Dimesnional Drawing

Integrated Components

HD4 165 CFM Vacuum/Pressure Pump

x1
CCW ROTATION

Heavy Duty Pump Stand

x1

Scrubber/Secondary

x1

Oil Separator/Muffler

x1
WITH EXHAUST DEFLECTOR

Heavy Duty Steel Oil Reservoir

x1

Plastic Flushing Reservoir

x1

Vacuum Relief Valve

x1

Pressure Relief Valve

x1

Vacuum/Pressure Gauge

x1

Pre-Filter with Stainless-Steel Inlet Filter

x1

Self-Aligning Drive

x1
GEARBOX OR HYDRAULIC

Heavy Duty Rexnord Omega Couplers

x1
FOR GEARBOX DRIVE UNITS

Replacement Parts

Read More
H2, H3, H4 Bolt on Pre-Filter Kits

Bolt-On Pre-Filter Kit – H2, H3, H4

$552.55
Read More
ADD
Read More

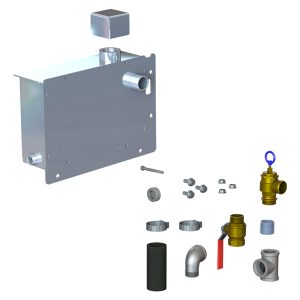

H4 Series - Left Hand P&P SeparatorMuffler Replacement

H4 Series – Left Hand P&P Separator/Muffler Replacement

$561.66
Read More
ADD
Read More

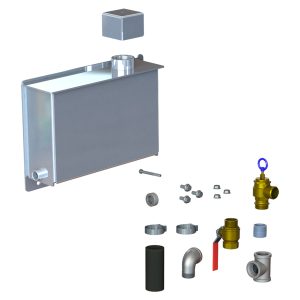

H4 Series - Right Hand P&P SeparatorMuffler Replacement

H4 Series – Right Hand P&P Separator/Muffler Replacement

$561.66
Read More
ADD
Read More

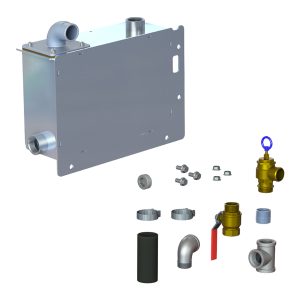

H4 Series - LH P&P Scrubber Replacement

H4 Series – Left Hand P&P Scrubber Replacement

$846.06
Read More
ADD
Read More

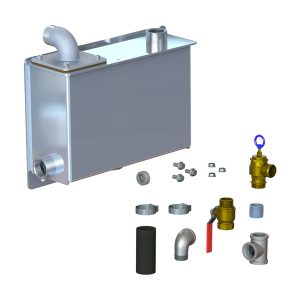

H4 Series - RH P&P Scrubber Replacement

H4 Series – Right Hand P&P Scrubber Replacement

$846.06
Read More
ADD
Read More
Self-Aligning Gearbox and Base Kit

Self-Aligning Gearbox & Base Kit – H4 Series

$1,058.68
Read More
ADD
Read More

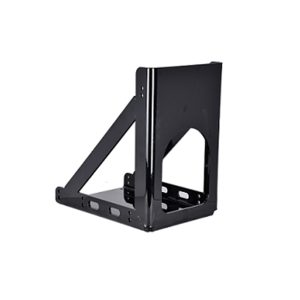

Steel Pump Base
