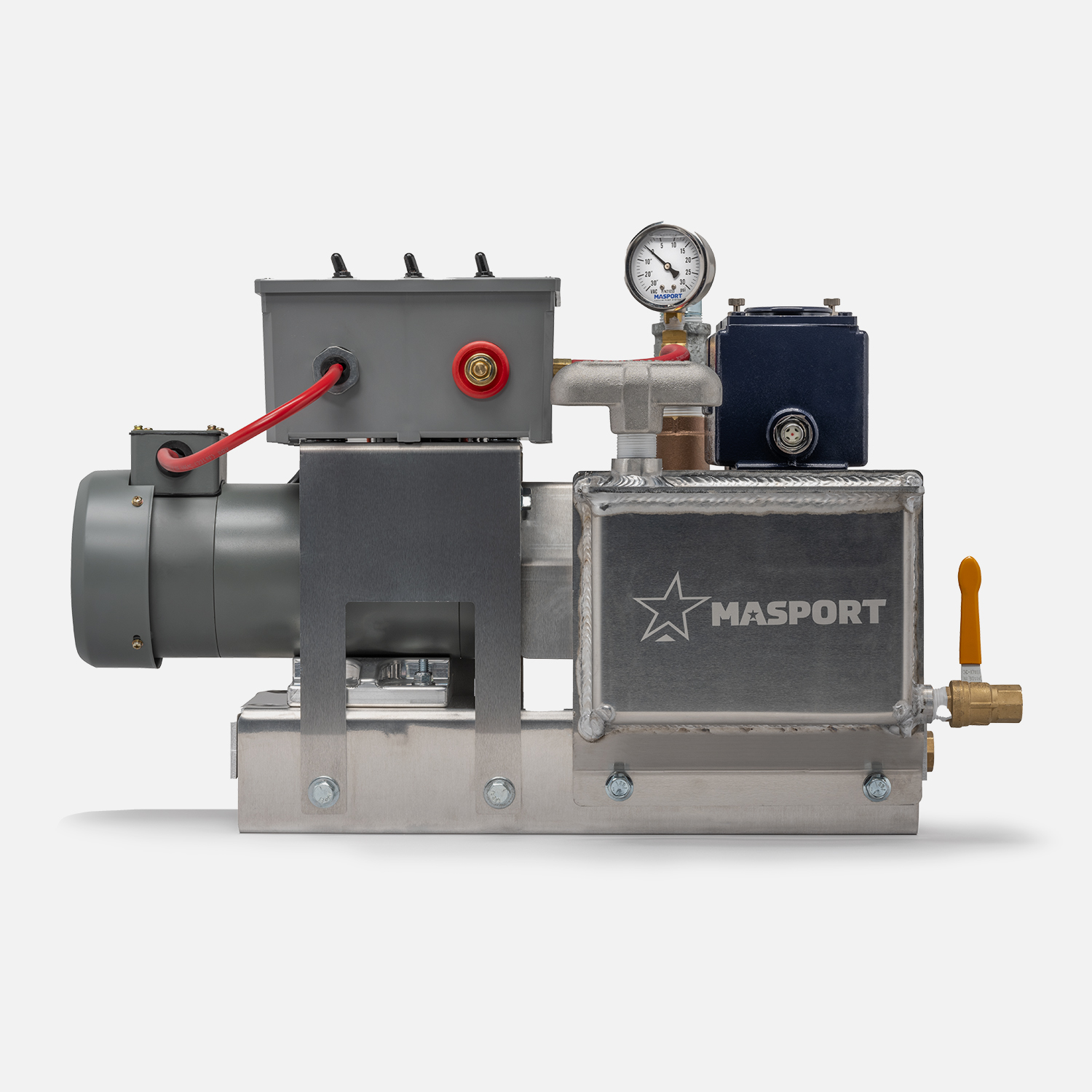

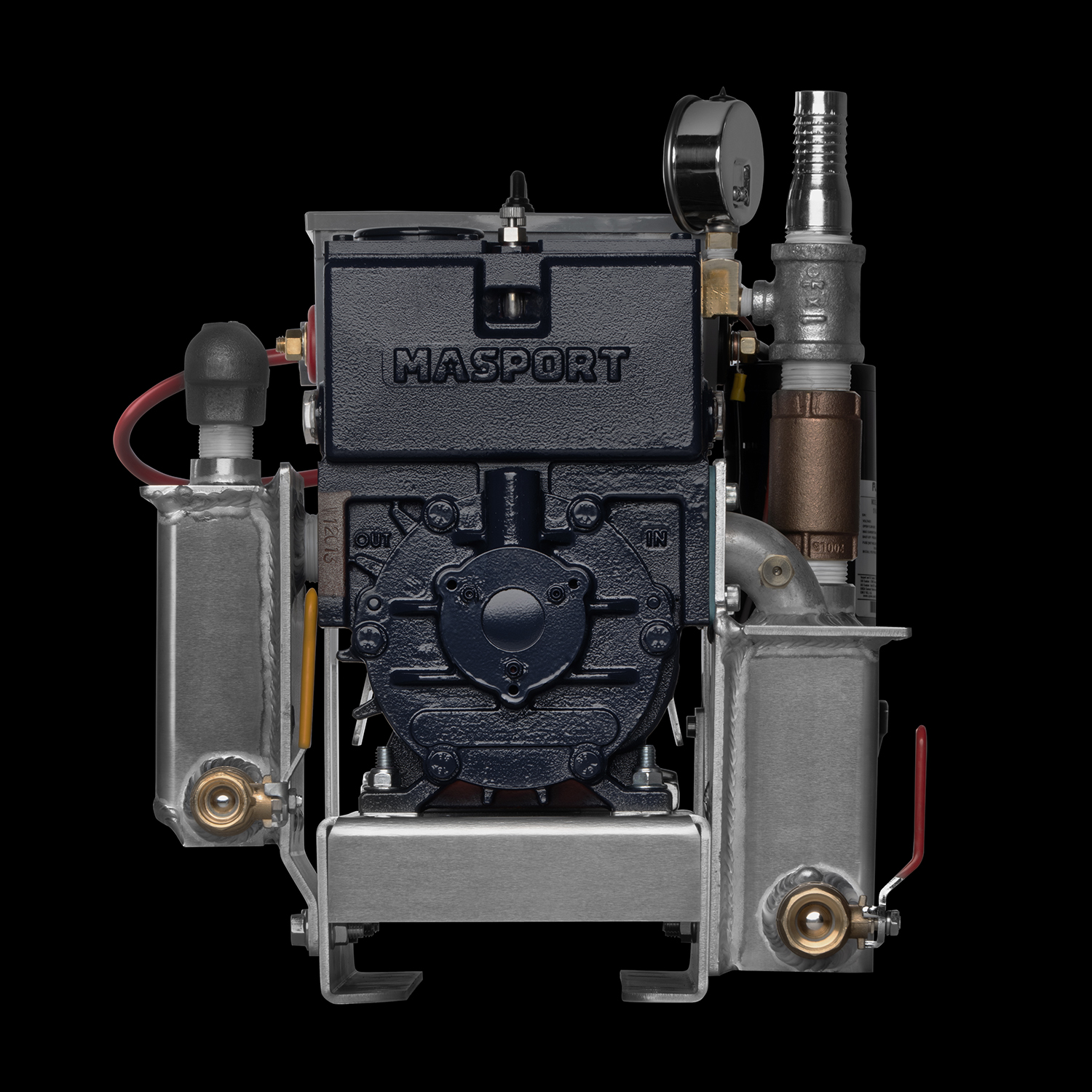

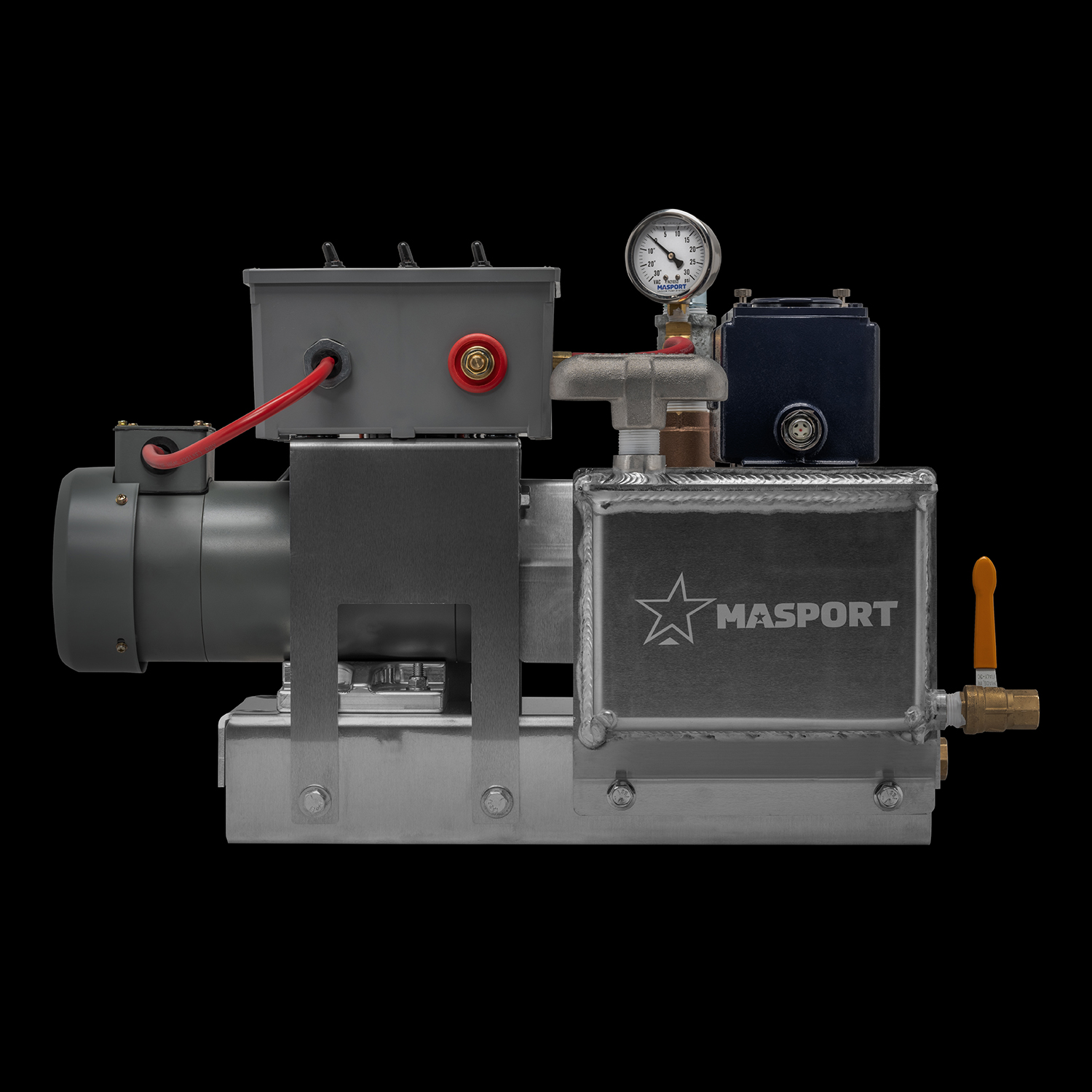

HD1 Pro Pack Ultimate 350 (Vacuum Only)

Technical Specifications

Airflow
36 CFM
Port Size
1″
Optimal Tank Size
100 to 750 Gallons
Oiling System
Built-In Reservoir with Drippers
Airflow
36 CFM
Electric Motor
1 HP / 12V DC
Weight (approx.)
115 lbs
Max Vacuum (Continuous)
20″ Hg
Max Vacuum (Intermittent)
27″ Hg

Documentation & Support

HD1 Pump Manual

Download (6.65 MB)

HD1 Pro Pack 350 (Vacuum Only) Brochure

Download (1.31 MB)

Get Support

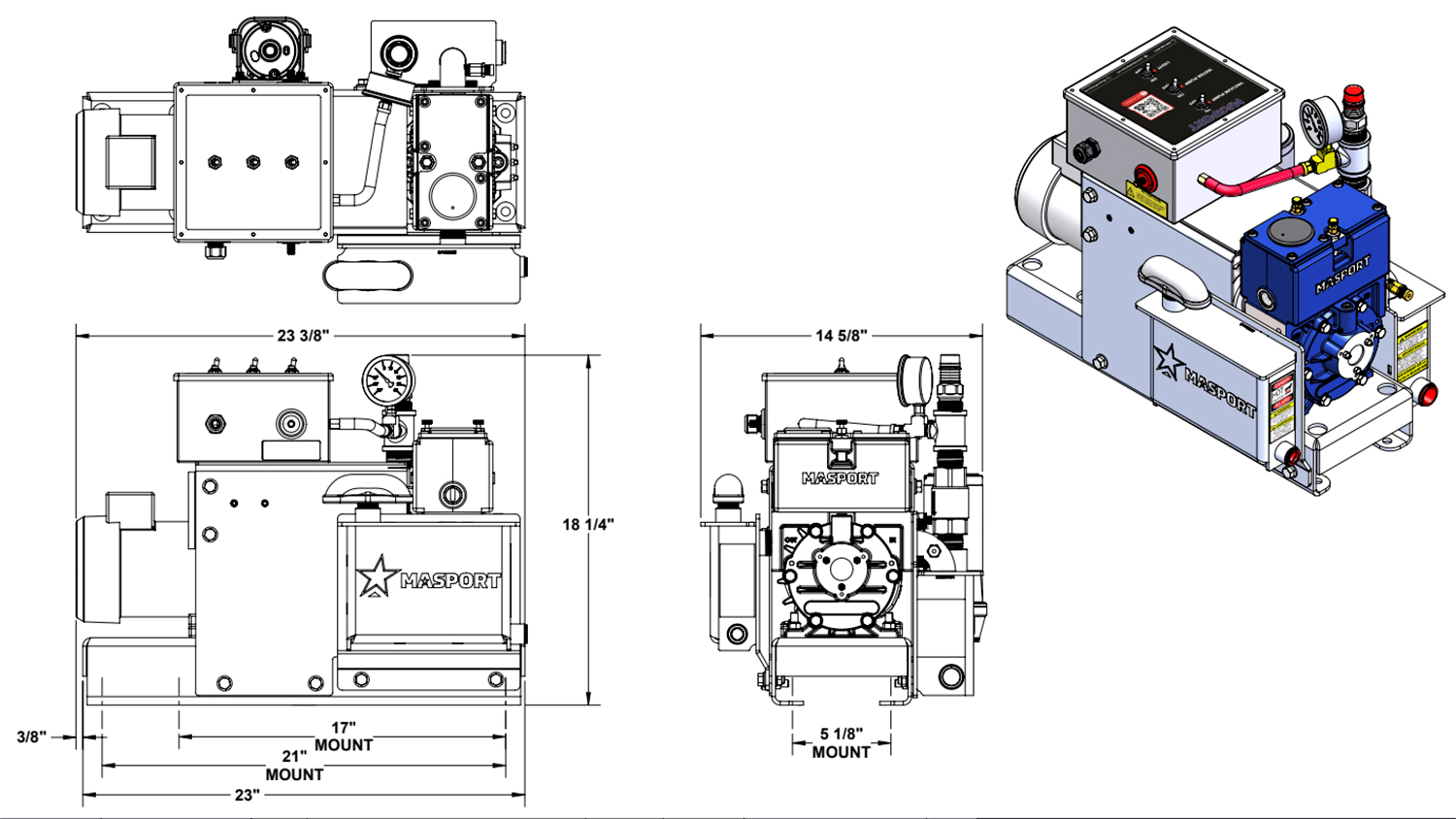

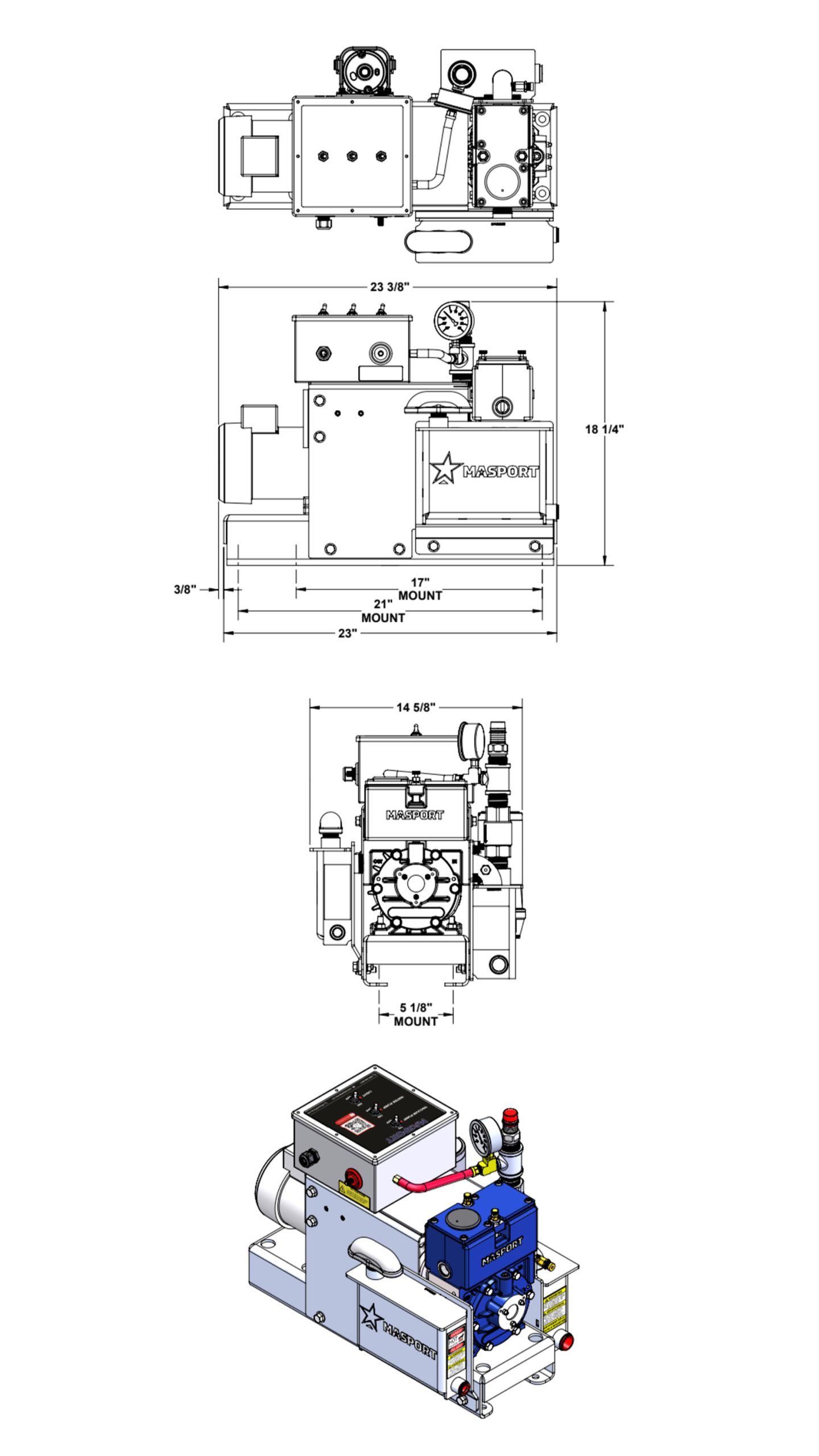

Dimensions

Length
23.375″
Width
14.625″
Height
18.25″

Integrated Components

HD1 Vacuum Pump (Vacuum Only)

Flojet® Water Pump

4.6 GPM & 45 PSI

Electric Motor

1 HP / 12V DC

Electrical Control Box with Operational Switches

Built In Oil Reservoir with Adjustable Drippers

Oil Separator/Muffler

Scrubber/Secondary

Vacuum Relief

Vacuum/Pressure Gauge

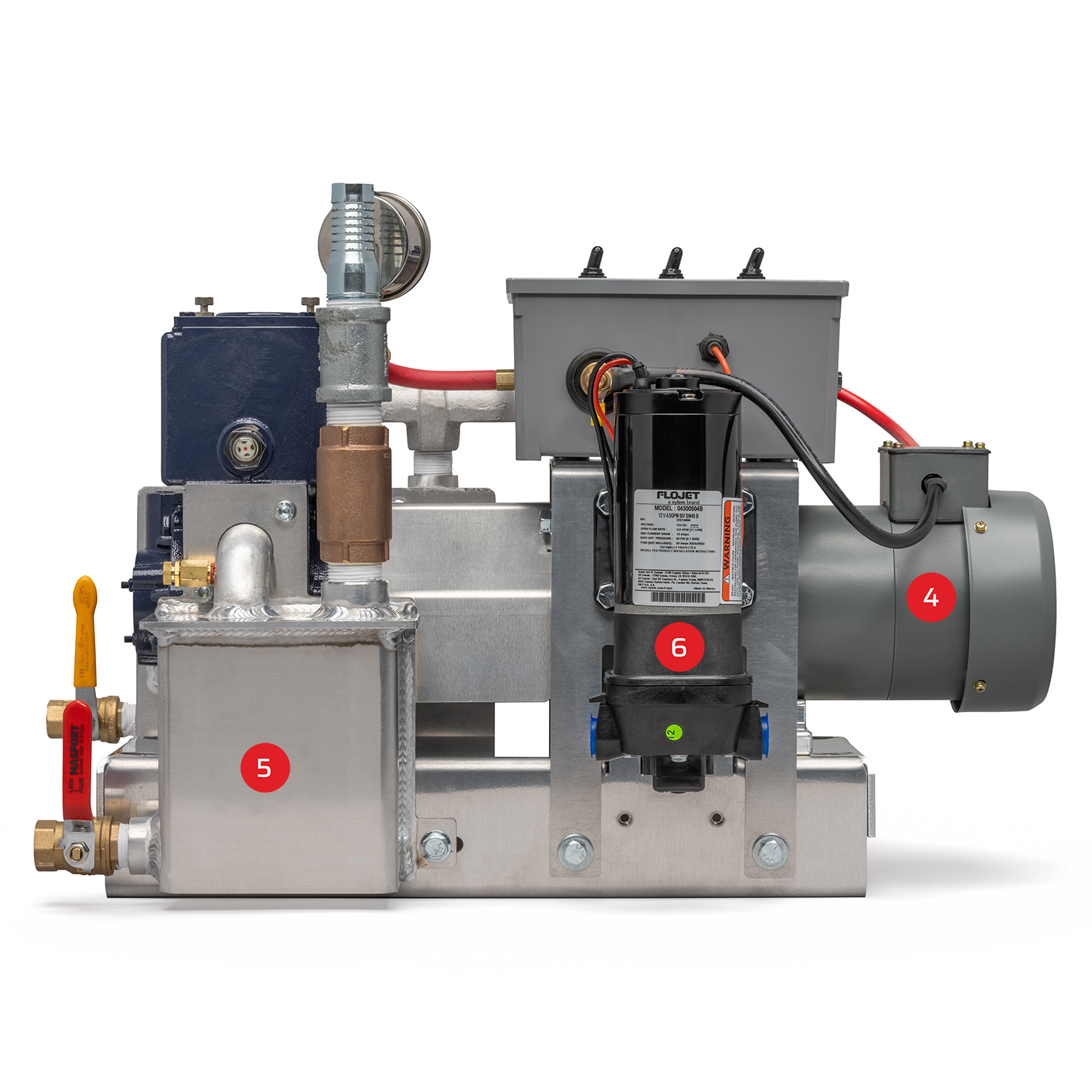

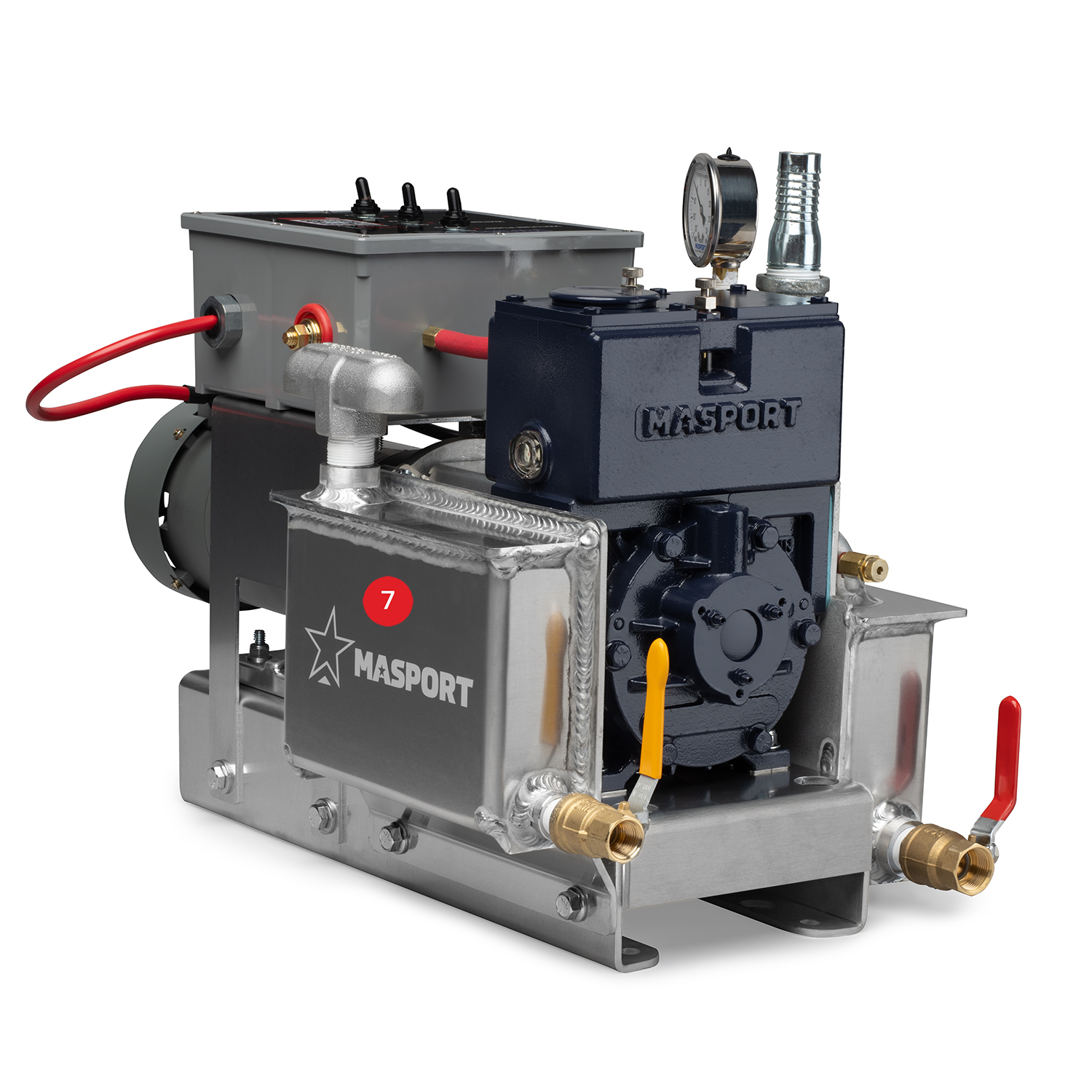

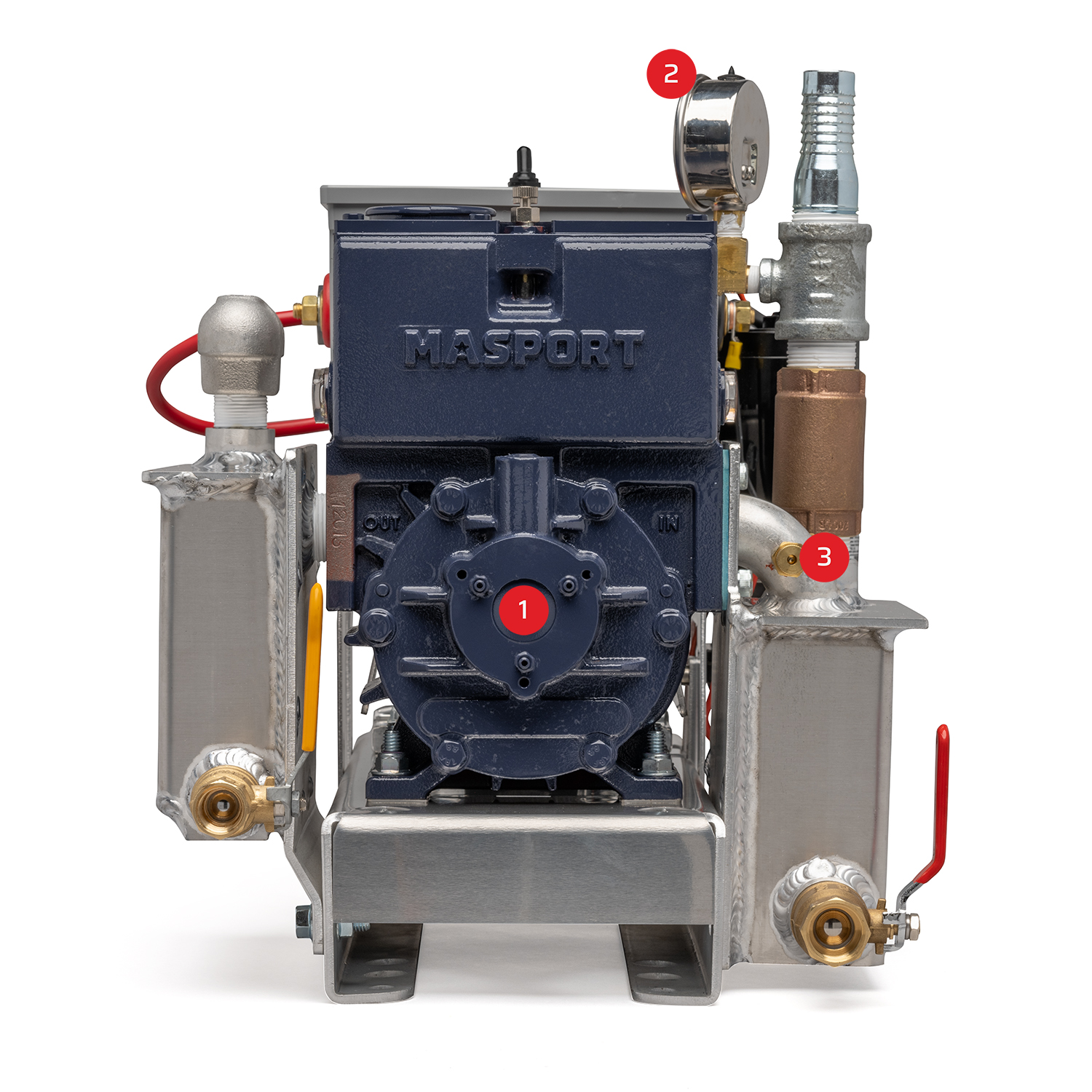

Features: HD1 Pro Pack Ultimate 350

1 HD1 36 CFM Vacuum Pump (Vacuum Only)
2 Vacuum/Pressure Gauge
3 Vacuum Relief Valve

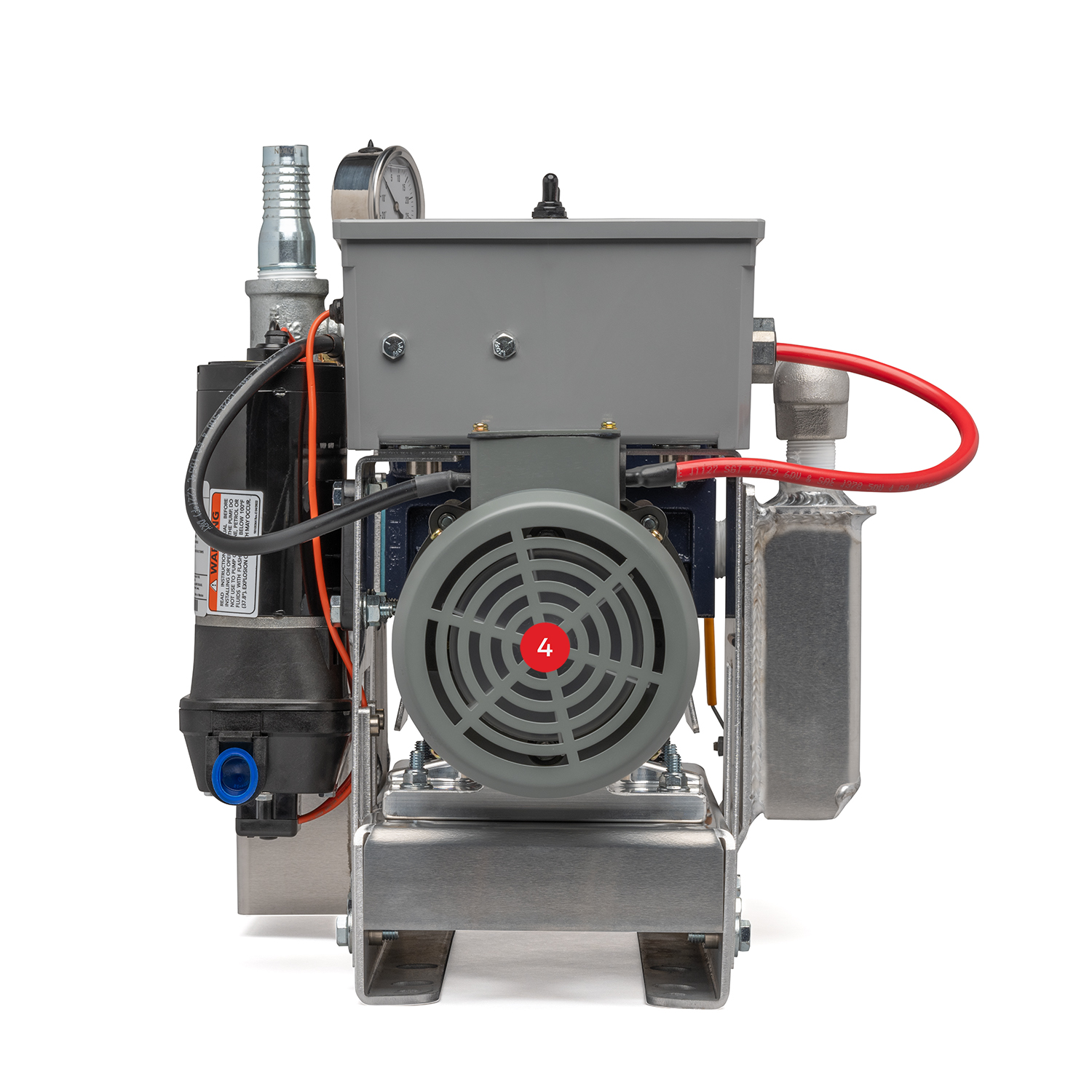

4 1 HP 12V DC Electric Motor

4 1 HP 12V DC Electric Motor
5 Scrubber/Secondary

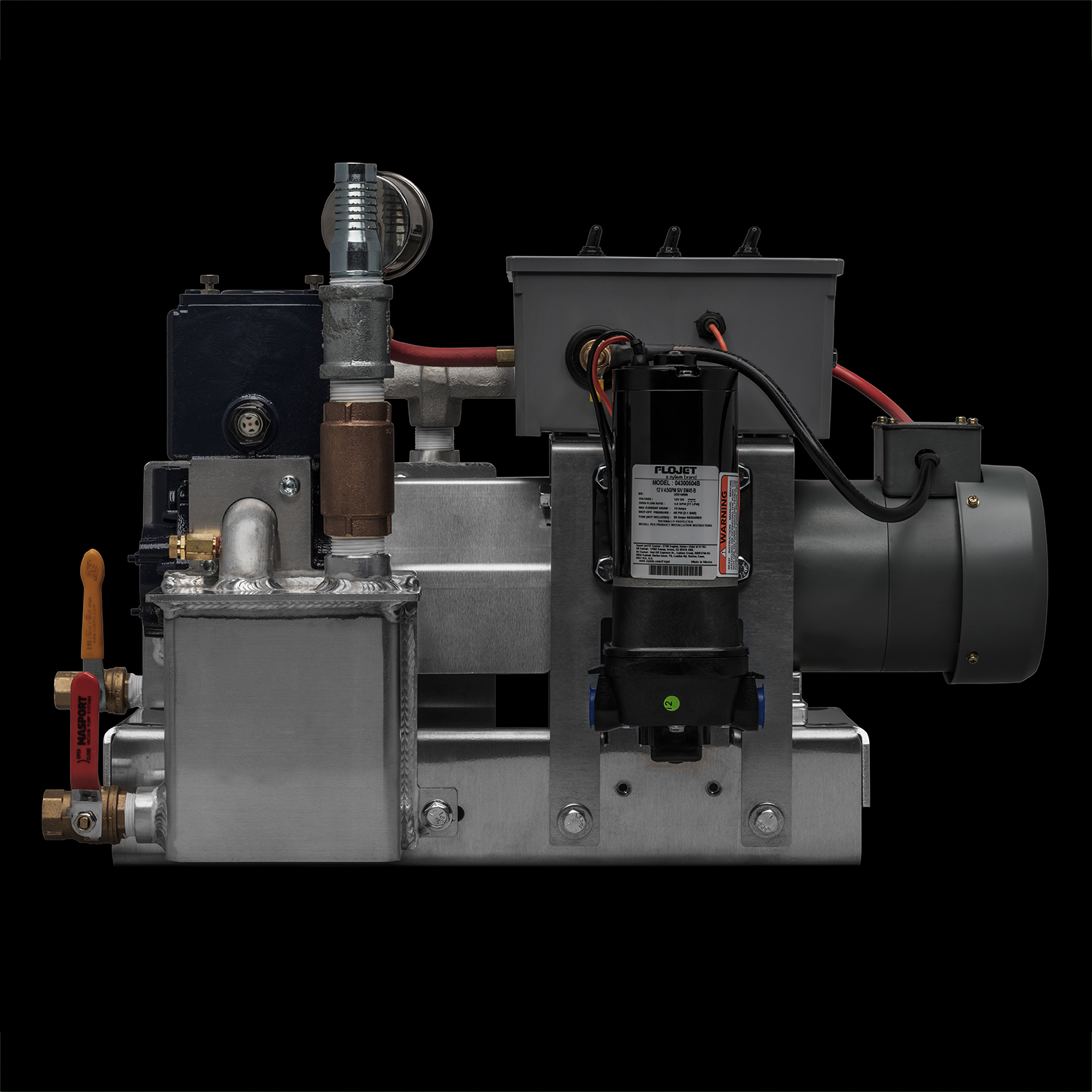

6 4.6 GPM & 45 PSI Flojet® Water Pump

7 Oil Separator/Muffler

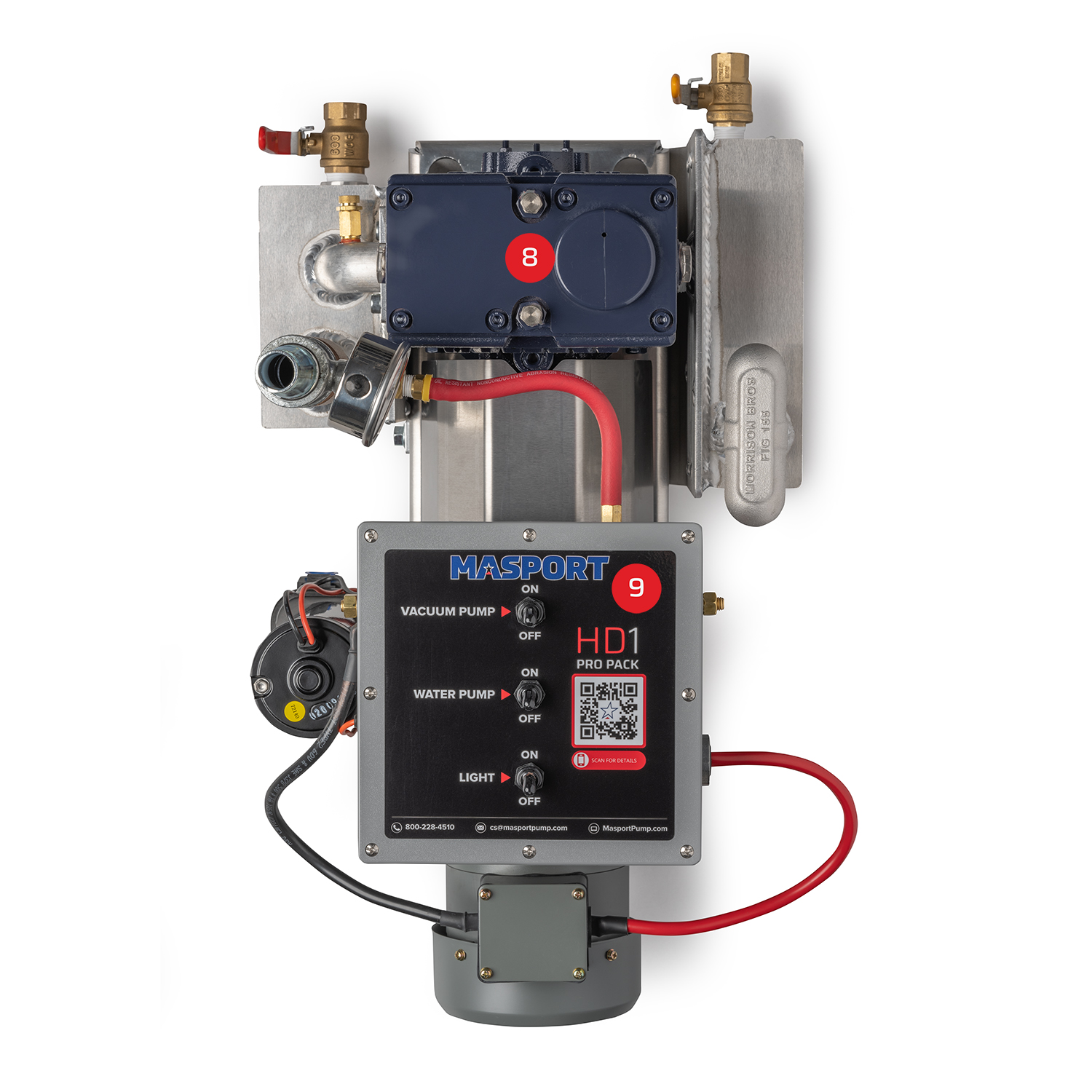

8 Built-In Oil Reservoir with Adjustable Drippers
9 Electrical Control Box with Operational Switches

Let’s Get Electric

Explore the first fully-electric vacuum pumping solution by Masport. Watch the videos below to preview its features and see just how simple installation and operation can be. Let’s get electric!

Which is the best
for you?

HD1 Pro Pack Ultimate 350 (Vacuum Only)

H1 Series

12662

Airflow
36 CFM
Port Size
1″
Optimal Tank Size
100 to 750 Gallons
Electric Motor
1 HP / 12V DC
Honda Engine
No Honda Engine

Learn more

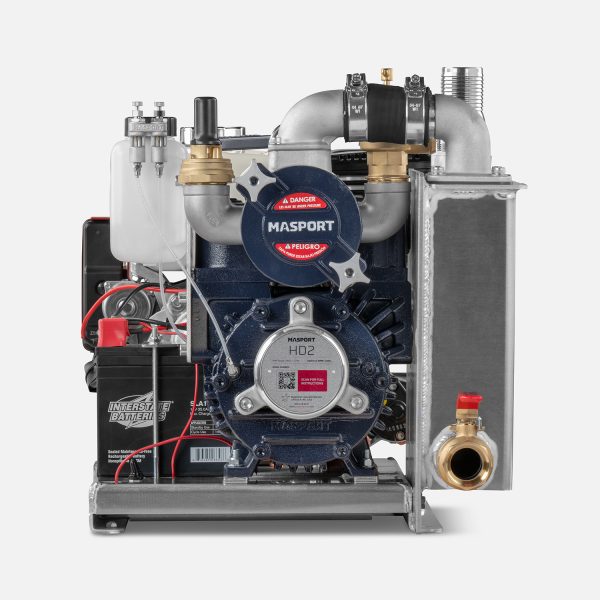

HD2 Pro Pack Ultimate 750

H2 Series

12652 (5.5HP Gas), 12655 (9HP Gas), 12660 (9HP Diesel)

Airflow
75 CFM
Port Size
1 1/2″
Optimal Tank Size
100 to 750 Gallons
Electric Motor
No Electric Motor
Honda Engine
5.5 HP Gas Engine, 9 HP Gas Engine

Learn more

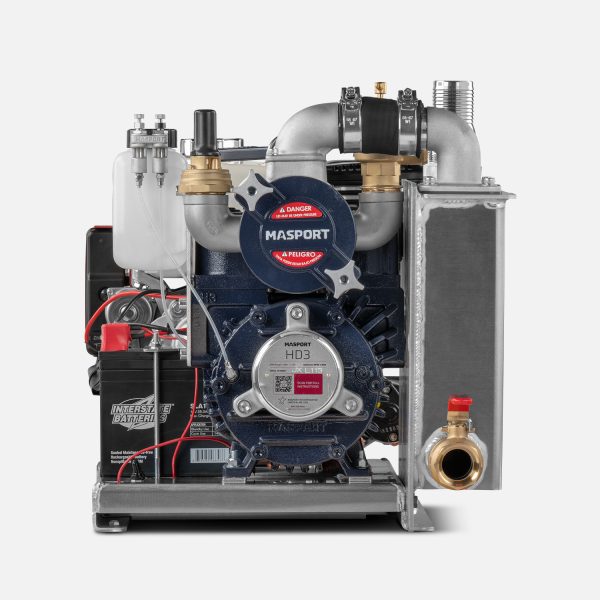

HD3 Pro Pack Ultimate 1000

H3 Series

12653 (9HP Gas), 12661 (9HP Diesel)

Airflow
112 CFM
Port Size
1 1/2″
Optimal Tank Size
500 to 1,000 Gallons
Electric Motor
No Electric Motor
Honda Engine
9 HP Gas Engine

Learn more

Replacement Parts

HD1 CCW Vacuum Only Pump

$1,332.65

Popular Accessories

Masport Pump Oil – All Seasons – 12 Gallons

$501.97

Masport Pump Oil – All Seasons – 4 Gallon Case

$201.02

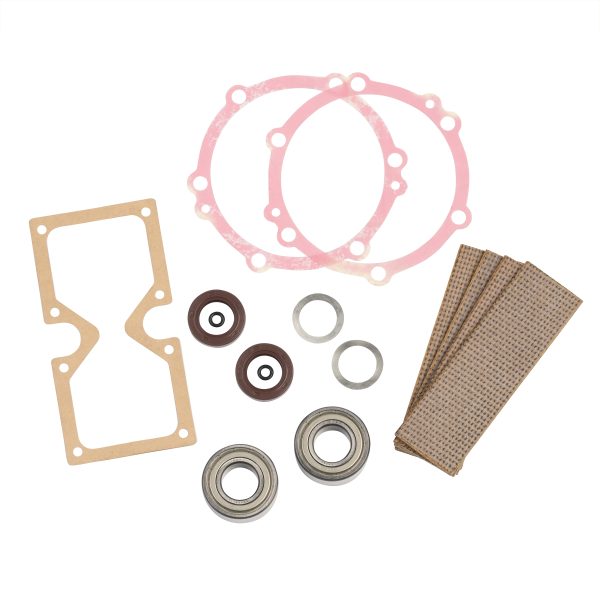

Rebuild Kit- H1 SERIES

$363.24
Part number
14613

Learn More

Add to cart

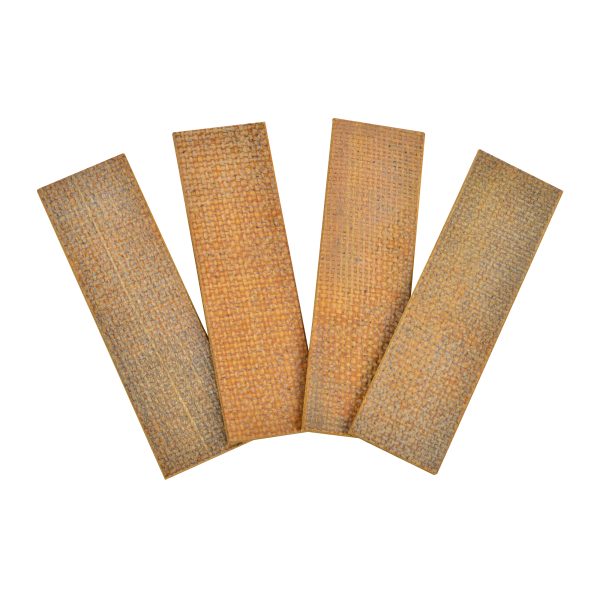

Vane Pack – H1 SERIES

$203.41
Part number
968217

Learn More

Add to cart

Gasket, Seal, O-Ring kit – H1 SERIES

$49.90
Part number
14647

Learn More

Add to cart

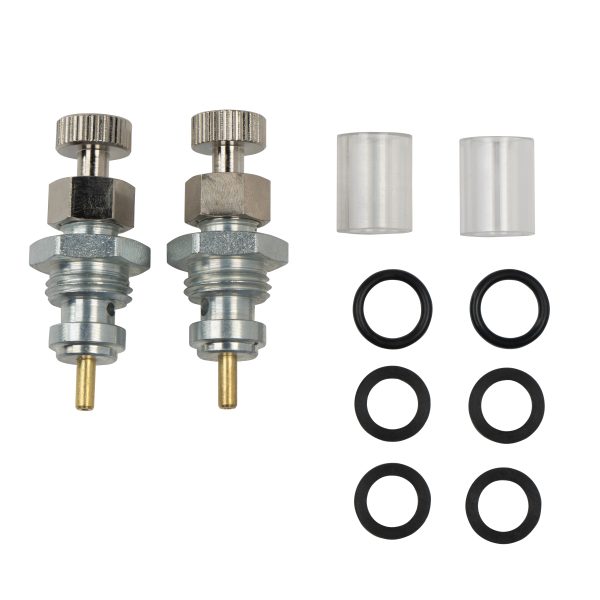

Dripper Pack (2 drippers) – HD1, HD2, HD3, M3+

$49.50
Part number
569145

Learn More

Add to cart

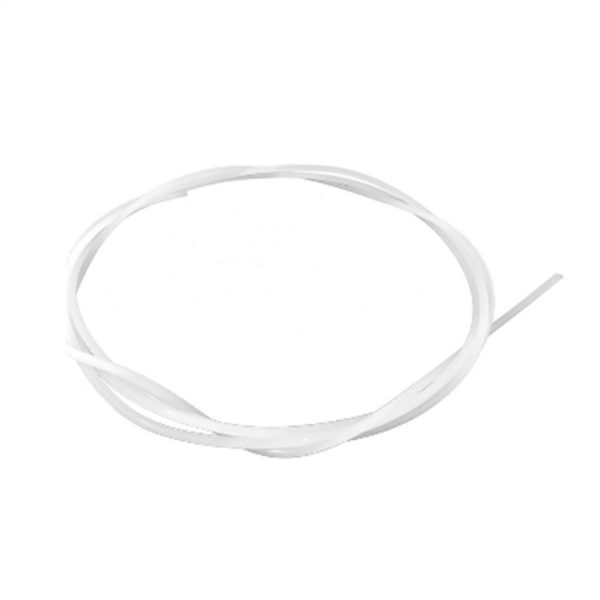

Oil Line – 10 Ft

$35.49
Part number
600293-10

Learn More

Add to cart

Oil Line – 50 Ft

$184.77
Part number
600293-50

Learn More

Add to cart

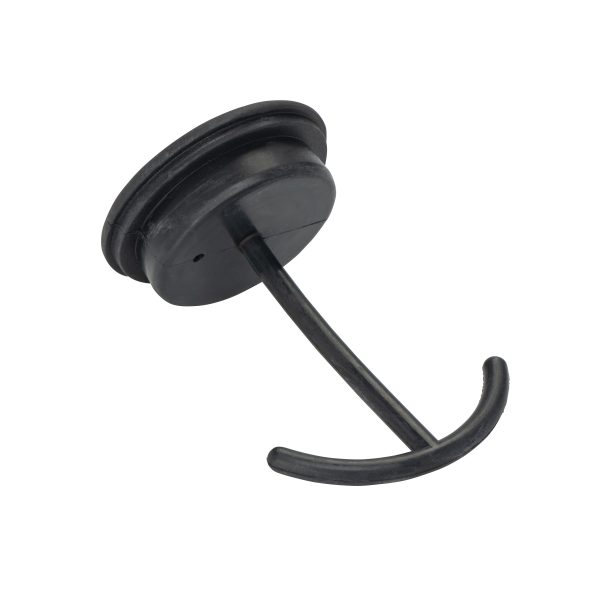

HD1 Oil Reservoir Plug

$19.95
Part number
569142

Learn More

Add to cart

HD1 CCW Vacuum Only Pump

$1,332.65
36 CFM
Part number
969115

Learn More

Add to cart
