Home / Engine Drive Systems / COBRA Pro Pack Plus – GAS
532 CFM

COBRA Pro Pack Plus – GAS

The COBRA Pro Pack Plus Rotary Vacuum Pump Engine Drive System is available in two engine types. Operates in both Vacuum and Pressure

  • Honda Engine 24.5 HP Gas Engine
Contact for More Details Find replacement parts
  • Part Number

    12939 (24.5HP Gas)
  • Airflow

    532 CFM
  • Optimal Tank Size

    3,000 to 8,000 Gallons
  • Port Size

    4″
  • Series

    COBRA
Cobra Pro Pack
Cobra Pro Pack
Cobra Pro Pack
  1. Home
  2. Products
  3. Engine Drive Systems
  4. COBRA Pro Pack Plus – GAS

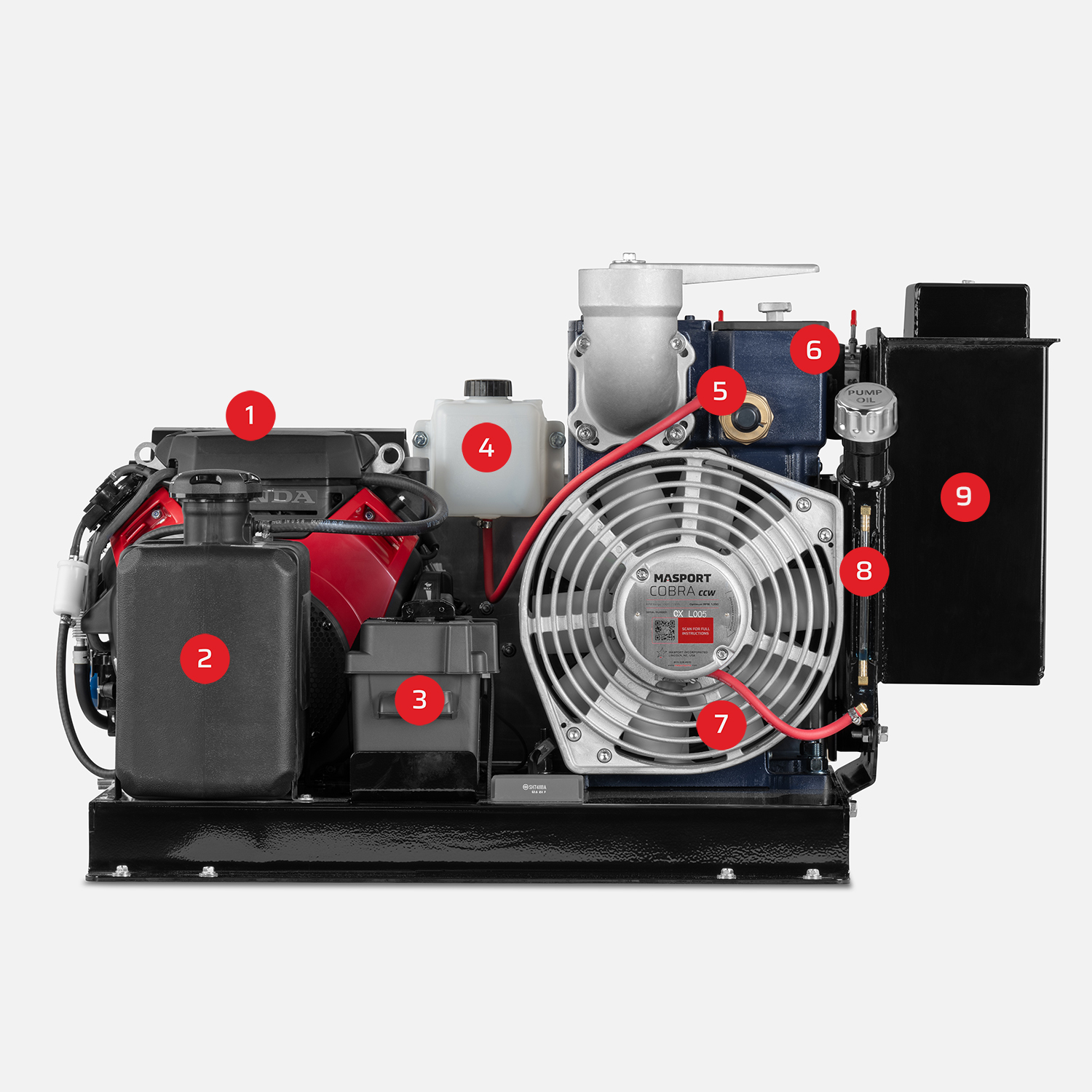

FEATURES: Cobra Pro Pack Plus – Gas Engine

  • 1 24.5 HP Honda Gas Engine – Belt Drive

  • 2 6 Gallon Engine Fuel Tank

  • 3 AGM Battery

  • 4 Plastic Flushing Reservoir

  • 5 Vacuum Relief Valve

  • 6 Pre-Filter with Stainless Steel Inlet Filter

  • 7 COBRA CCW 532 CFM Vacuum/Pressure Fan Cooled Pump

  • 8 Steel Oil Reservoir

  • 9 Separator

Cobra Pro Pack Plus

Technical Specifications

Cobra Pro Pack
  • Airflow

    532 CFM
  • Port Size

    4″
  • Cooling Type

    Fan Cooled
  • Optimal Tank Size

    3,000 to 8,000 Gallons
  • Oiling System

    Automatic Oil Pump
  • Oil Reservoir Options

    Steel
  • Honda Engine

    24.5 HP Gas Engine
  • Weight (approx.)

    970 lbs (24.5HP Gas)
  • Max Vacuum (Continuous)

    22″ Hg
  • Max Vacuum (Intermittent)

    27″ Hg
  • Max Pressure (Continuous)

    20 P.S.I.G.
  • Max Pressure (Intermittent)

    30 P.S.I.G.

Documentation & Support

COBRA Pump Manual
Download (7.34 MB)
Get Support

Dimensions – 24.5 HP Gas

  • Width

    46.0625″
  • Height

    33.1875″
  • Depth

    39″
Cobra Pro Pack

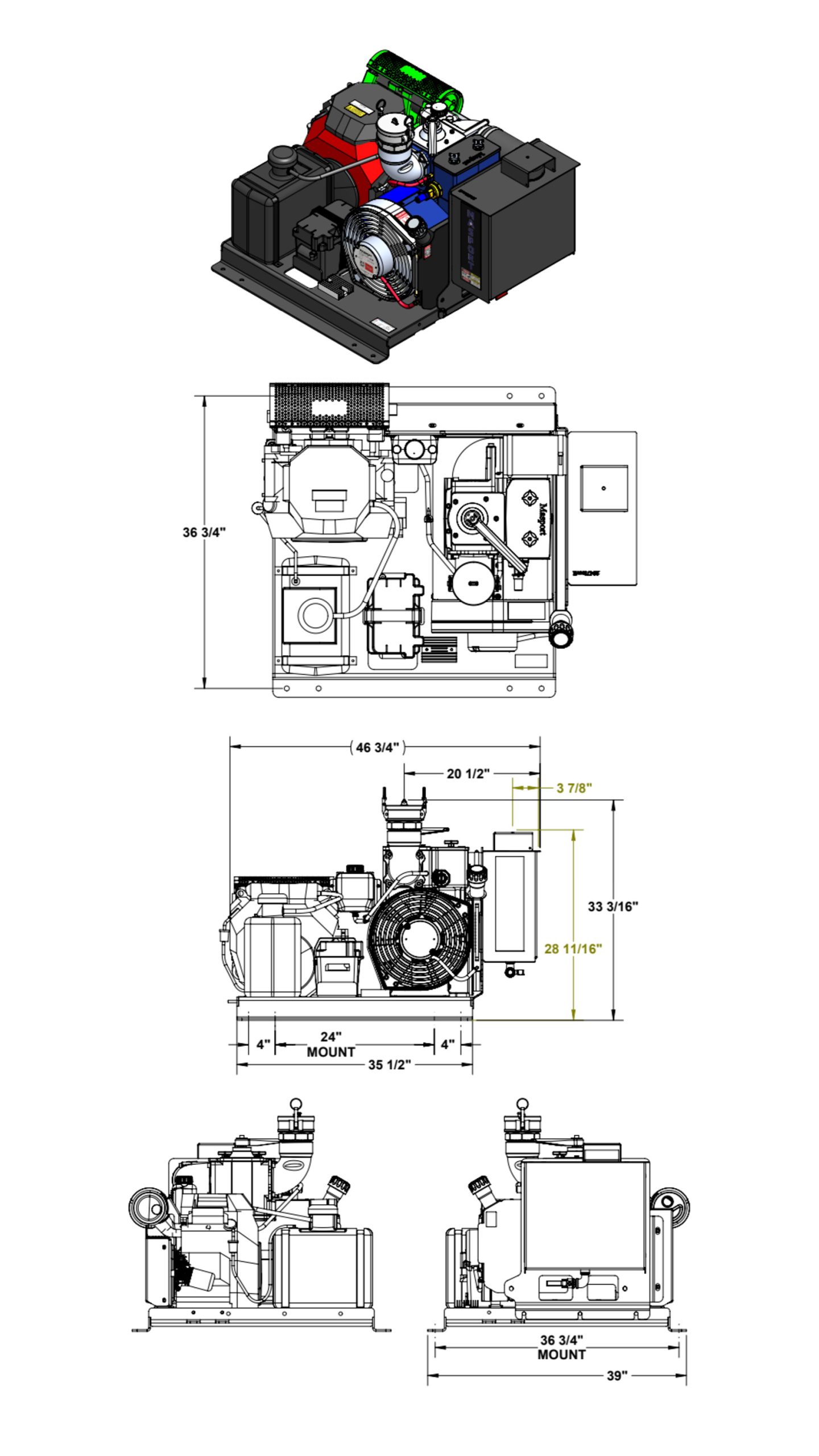

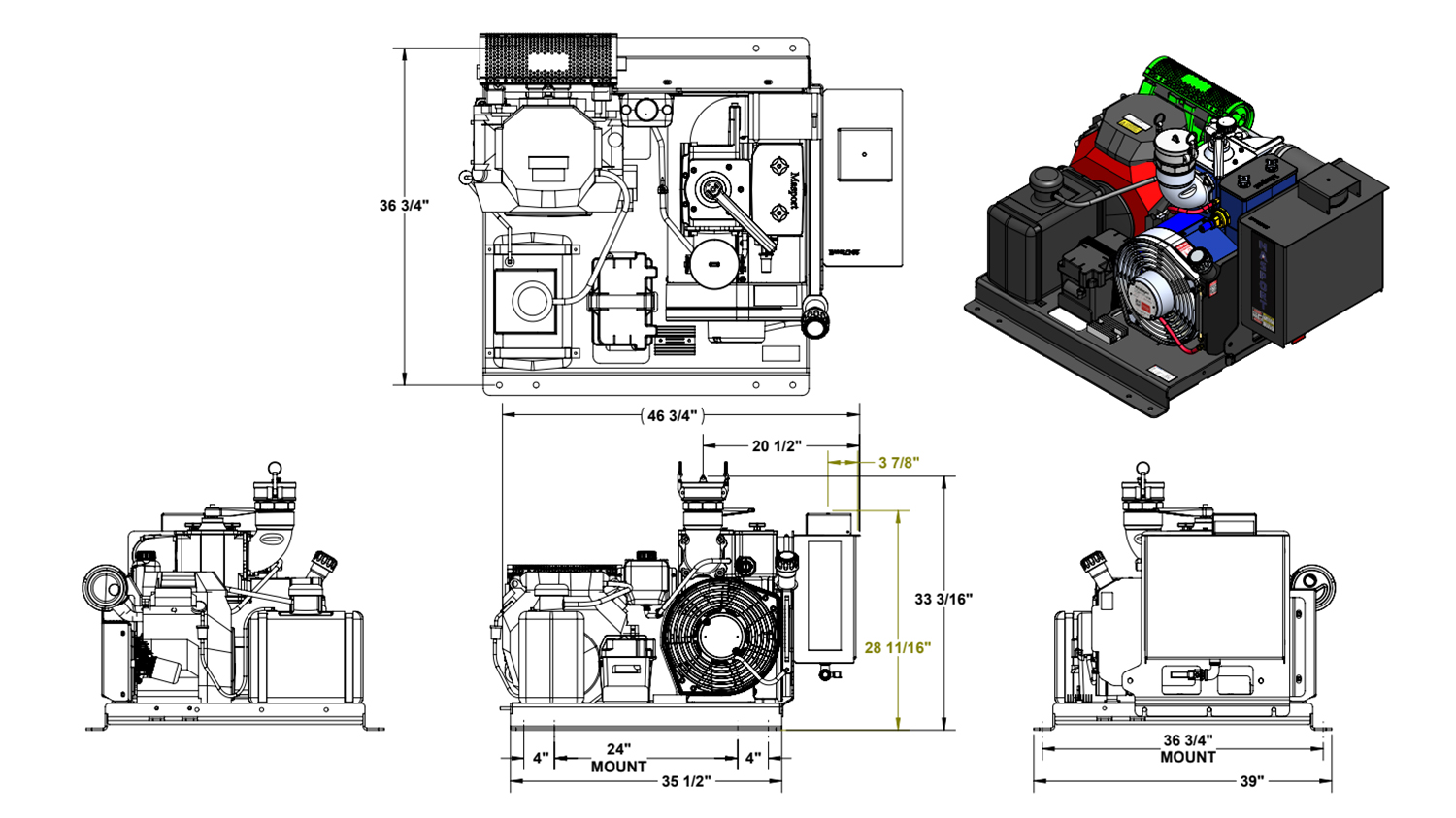

Dimensional Drawing

Integrated Components

COBRA 532 CFM Vacuum/Pressure Pump

x1
CCW

Gas Engine

x1

AGM Battery

x1

Steel Oil Reservoir

x1

Engine Fuel Tank

x1

Vacuum Relief Valve

x1

Stainless Steel Inlet Filter

x1

Oil Separator/Muffler

x1
